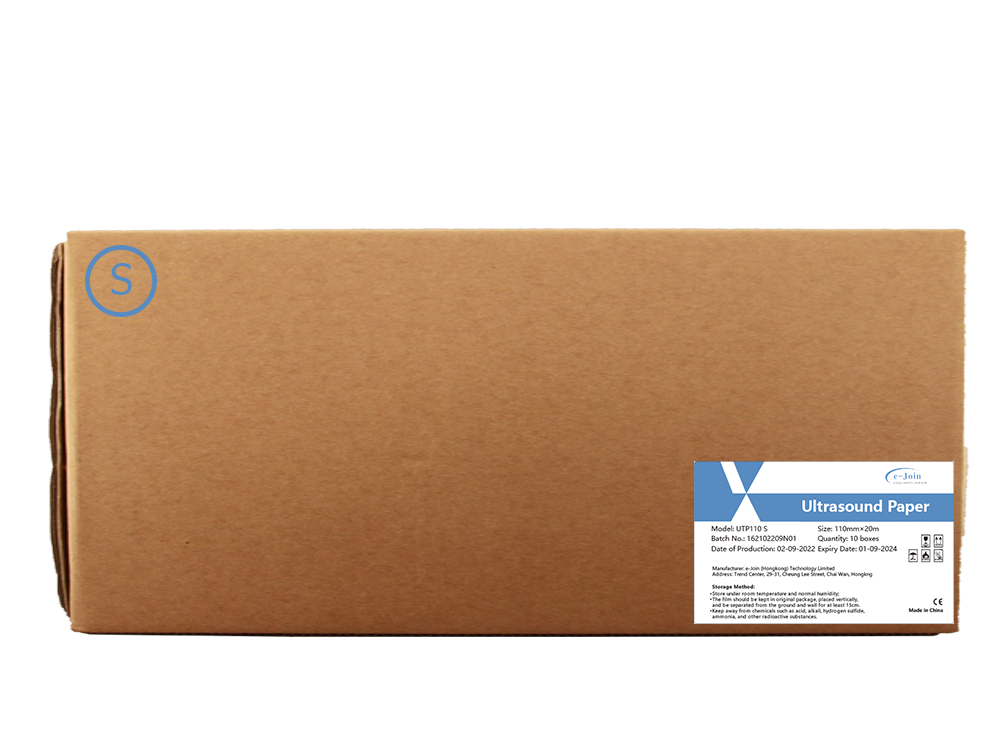

UTP110 (S#), Medical Thermal Diagnostic Imaging Dry Clear Ultrasound Paper (e-Join)

UTP110 (S#, HG#, HD#)

Medical Thermal Diagnostic Imaging Dry Clear Ultrasound Paper

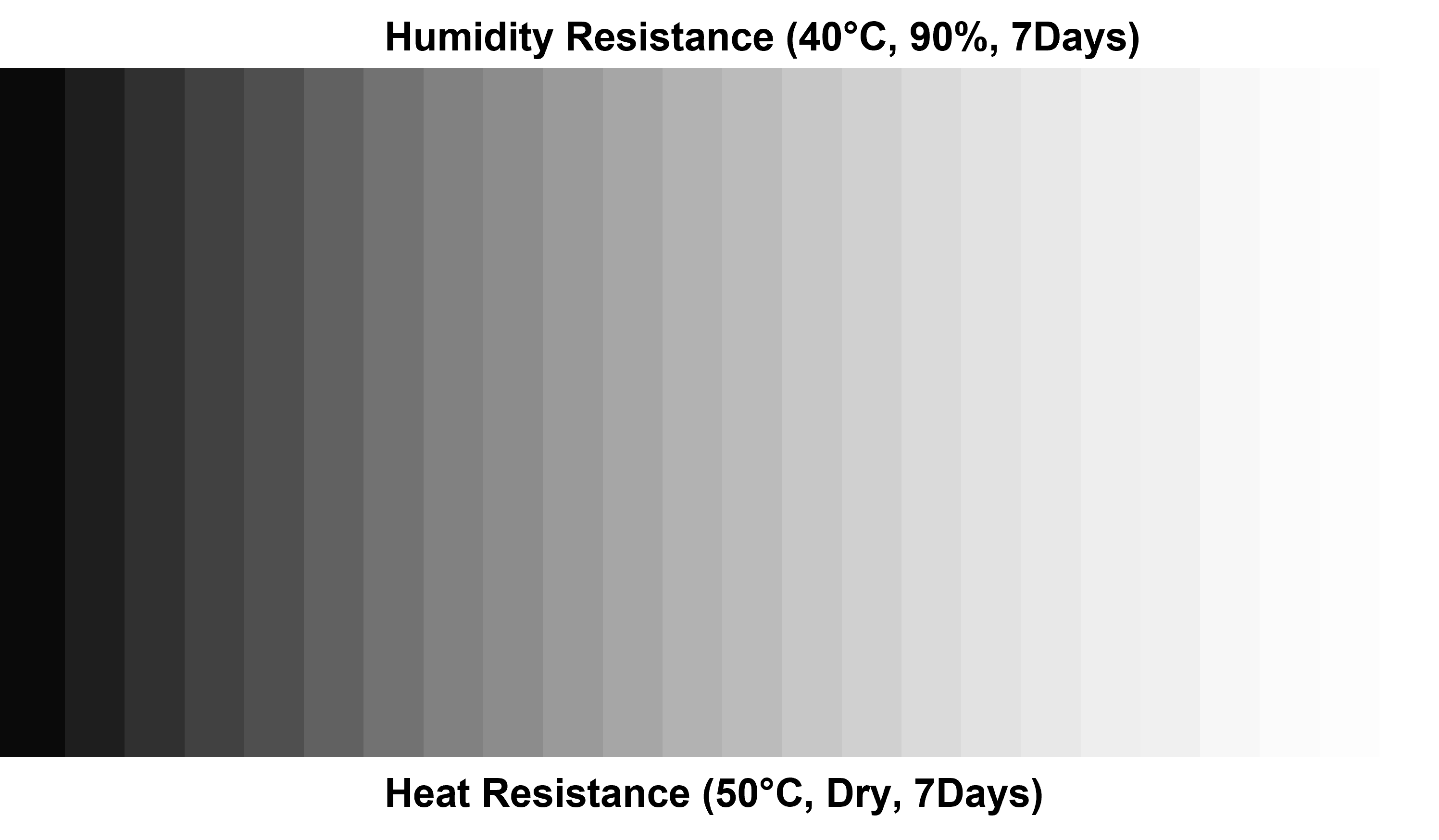

The precision and reliability from Medical Dry Thermal Imaging Film is also available in ultrasound-quality paper. Medical thermal diagnostic imaging dry clear ultrasound paper (UTP110: S#, HG#, or HD#) features precise, high-quality imaging and accurate grey-scale reproduction to achieve the correct tonal range of a printed image. The durable, long-term quality of the printed images, now and over time, can be crucial, though the imaging effect is clearly determined by the physical parameters of a video thermal printer. According to the mechanical printing principle of the mainstream video imaging printers in the market, the ultrasound print media is strictly developed with carefully matched grey-scale characteristics that give the best possible image transfer quality. Relying on the unique specialized paper formulation, the longevity of printed images is maximized.

Share to:

Layer Structure of Ultrasound Paper

One side of the ultrasound paper is successively coated with a gloss layer, a protective layer and a thermal imaging layer. Apply an anti-static coating on the other side of the ultrasound paper.

Layer Structure of Medical Thermal Diagnostic Imaging Dry Clear Ultrasound Paper UTP110 (S#, HD#)

Layer Structure of Medical Thermal Diagnostic Imaging Dry Clear Ultrasound Paper UTP110 (HG#)

High Humidity and Heat Resistance

High temperature can cause a significant loss of print density. High humidity can lead to degradation of thermal prints. The thermal imaging layer of Ultrasound Paper (S#, HG#, or HD#) features high resistance to humidity and heat. Such degradation is much less marked with the Ultrasound Paper, which is designed to maintain picture durability.

Superior Print Quality

The rigorous application of pressure control ensures that the thermal imaging layer offers the hassle-free delivery of high-quality coloring properties. The Υ curve and Maximum Density (Dmax) are strictly adjusted to ensure the stable supply of consistent, superb image quality.

Application

♦ Widely used in the examination and radiology diagnosis of human limbs in patient wards or operating room.
♦ Suitable for medical institutions such as hospitals, clinics, physical examination centers, ambulances, etc.
♦ Used as a stand-alone X-ray workstation, sports medicine and veterinary medicine.
