FV4217

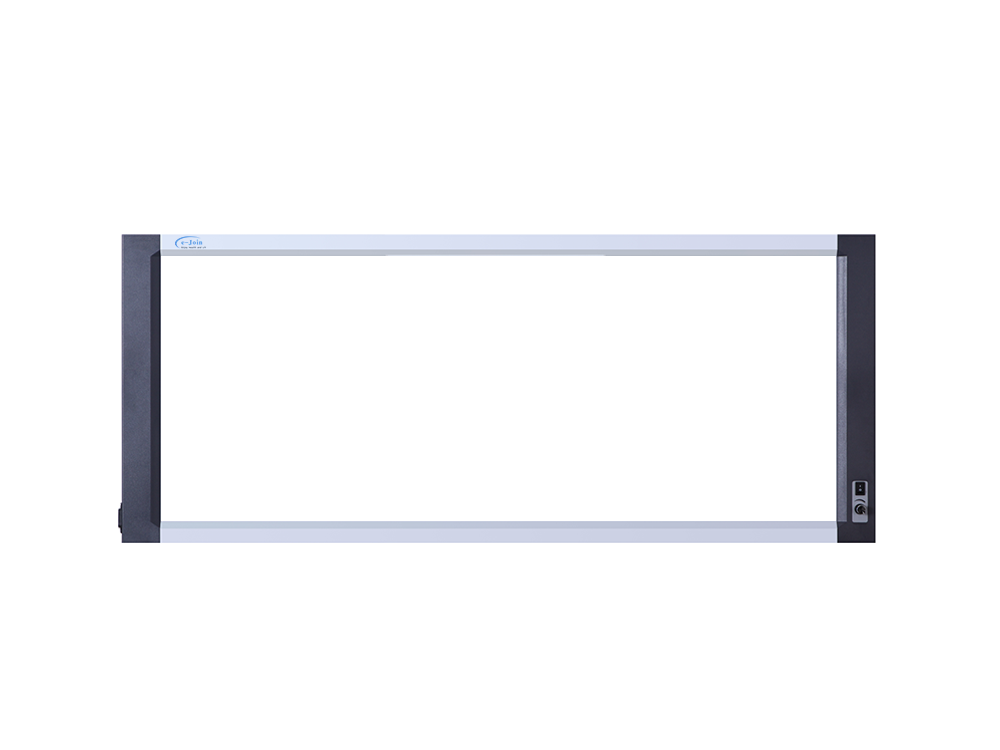

Triple High‐strength Ultra-thin Medical X-ray Dry Film Viewer

Medical X-ray Film Viewer (FV4217), a new ultra slim LED medical viewer compliant with the essential requirements of the Low Voltage (Directive 73/23 EEC), integrates the current advanced electronic control technology and LED light source. Emitted by the LED light bar placed inside of the film viewer, a very cold white light (6500° Kelvin) is created on the screen for a precise film viewing of details. The screen gets high uniformity and stability, without dark point and flicker. Utilizing LED technology, the highly efficient triple high‐strength ultra-thin medical X-ray dry film viewer (FV4217) provides a superb bright luminescence with around 100,000 hours lifetime to raise significantly comfort and quality of radiological diagnostics. The design and characteristics of the Film Viewer (FV4217) provide medical imaging professionals with unmatched diagnostic conditions.

Share to:

Basic Parameters

◊ Light Source: Matrix LED
◊ LED Lifespan: > 100,000hrs
◊ Light Uniformity: > 98%
◊ Brightness:>15,000 lux, >4,500 cd/㎡
◊ Power Supply Input: AC100-240V, 50/60Hz
◊ Frame (L × H × T)/mm: 1,197 × 495 × 25
◊ Viewing Area (W × H)/mm: 1,080 × 425(42″×17″)
◊ Power Consumption: 60W

Features

■ Low power consumption.
■ High-definition film reading experience.
■ Switch various brightness through side dimmer.
■ Designed for removing or attaching film easily.
■ Multiple light sections with FAAS (Film Automatic Activation Switching).
■ No chemicals (Halogen, Mercury, Cadmium, Lead and CFCs) harmful to the environment.
■ Bulit-in a switching power supply supports any supply voltage from 100V to 240V @ 50/60Hz without the need for switch reversion.

Advantages

♦ Placed on a wall or flat surface.
♦ Used in private medical practices, and hospitals.
♦ Support the film viewer through light removable metallic holder.
♦ High-quality film viewer for General X-ray diagnosis, CT and MRI film viewing, and Mammography diagnosis.
