Basic Parameters
◊ Light Source: Matrix LED
◊ LED Lifespan: > 100,000hrs
◊ Light Uniformity: > 98%
◊ Brightness:>15,000 lux, >4,500 cd/㎡
◊ Power Supply Input: AC100-240V, 50/60Hz
◊ Frame (L × H × T)/mm: 845 × 495 × 25
◊ Viewing Area (W × H)/mm: 720 × 425(28″×17″)
◊ Power Consumption: 40W
Features
■ Light scatters homogeneously.
■ Bright luminescence without blinking.
■ Fixing rollers installed in the sides of the screen to fix films.
■ A power control located on the front on the design box frame.
■ Provide light variation from 100% to 10% by the light intensity regulation.
■ More linear brightness adjustment, more accurate dimming, more stable color temperature.
■ Flawless design of the light diffuser channel – Equal distribution of light enhances picture resolution.
■ The screen is automatically on once a film is inserted in and off in the meantime of the film pulled out.
Advantages
♦ Table or wall mounted.
♦ Consistent spatial distribution enhances contrast for better details of bone and soft tissues.

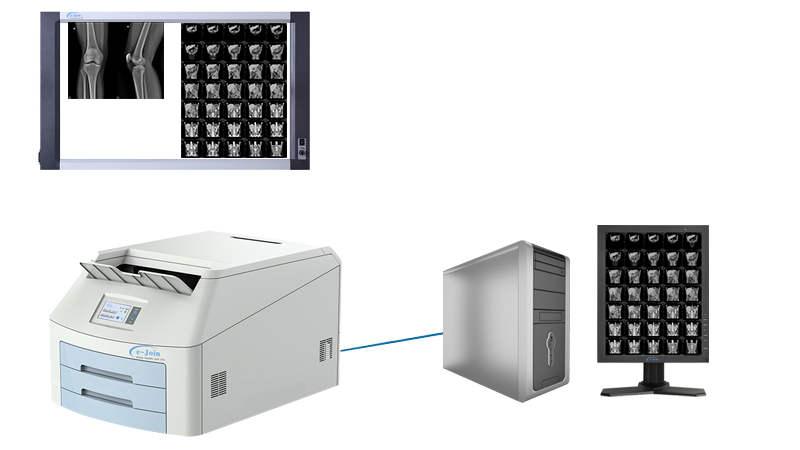

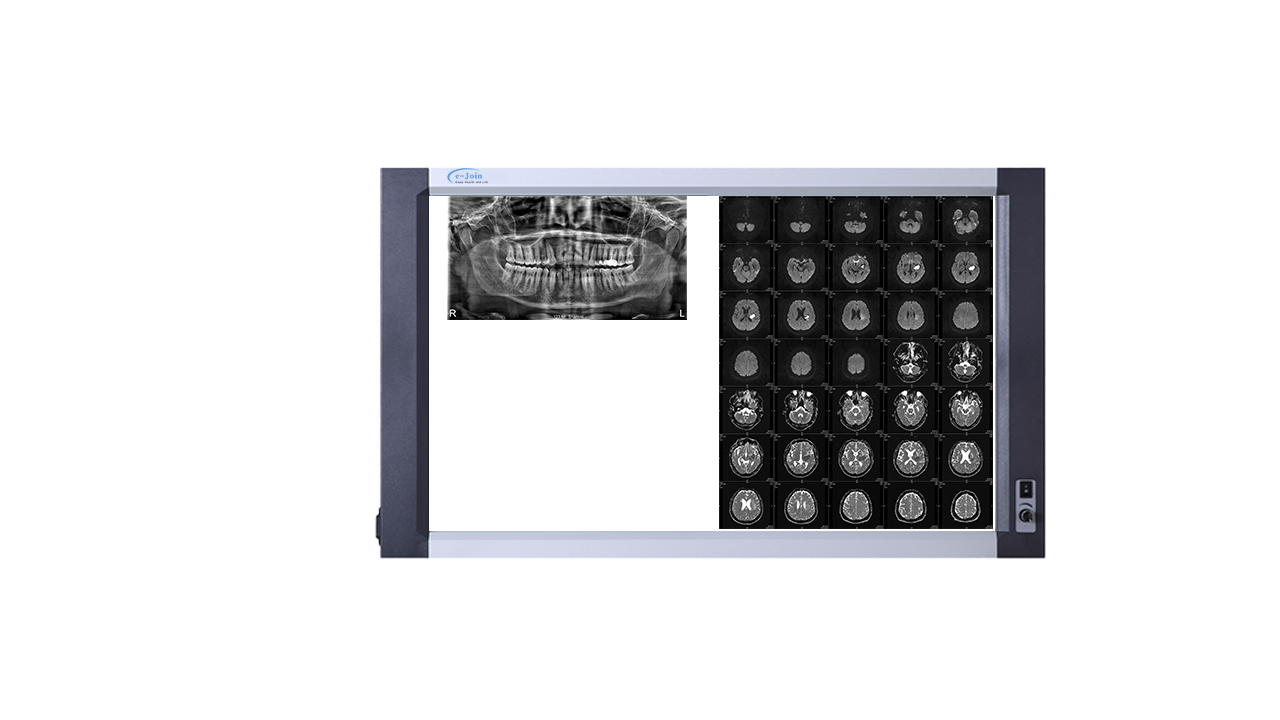

♦ High-quality film viewer for General X-ray diagnosis, CT and MRI film viewing, and Mammography diagnosis.
