FV1417

Single High‐strength Ultra-thin Medical X-ray Dry Film Viewer

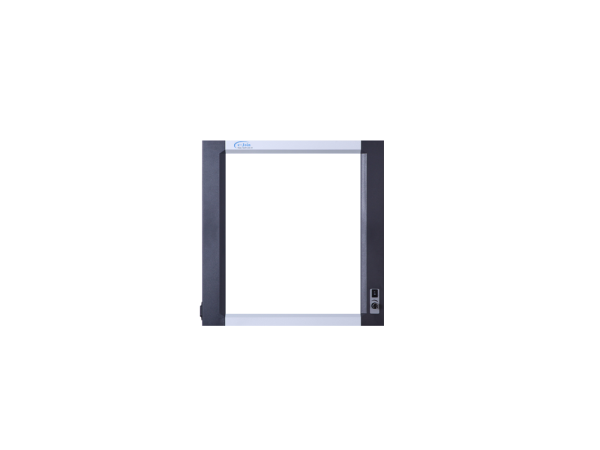

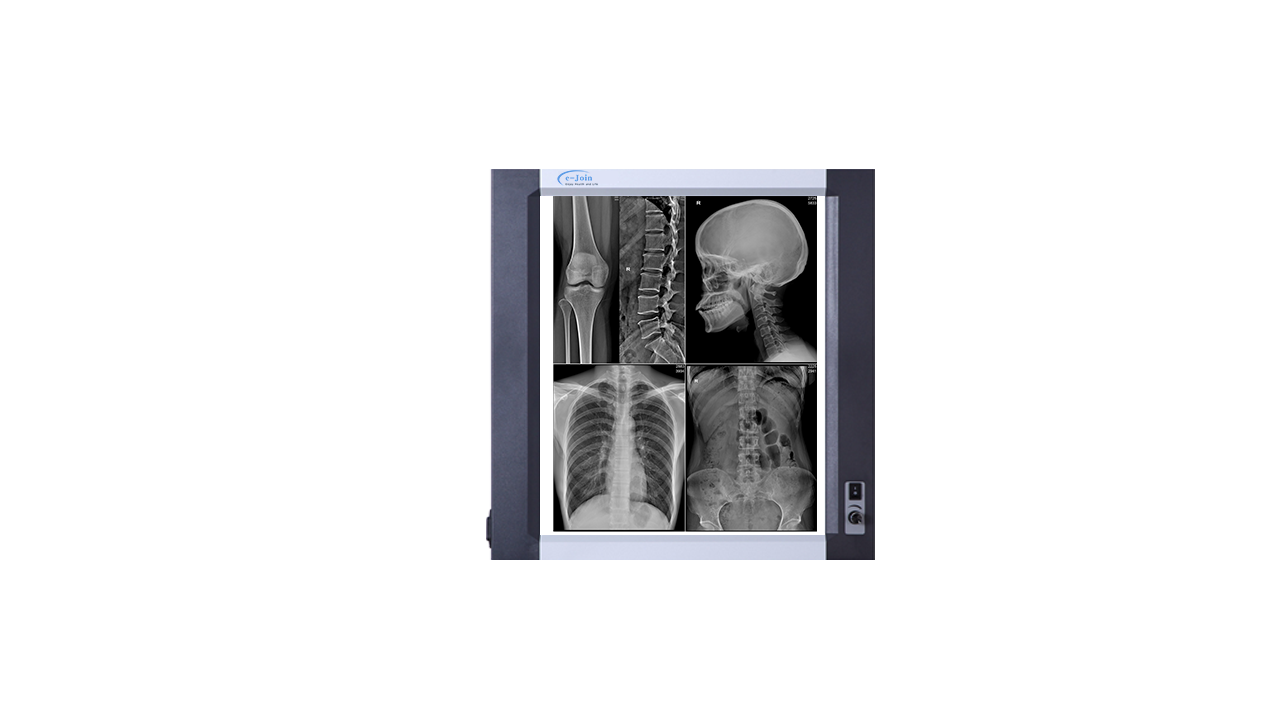

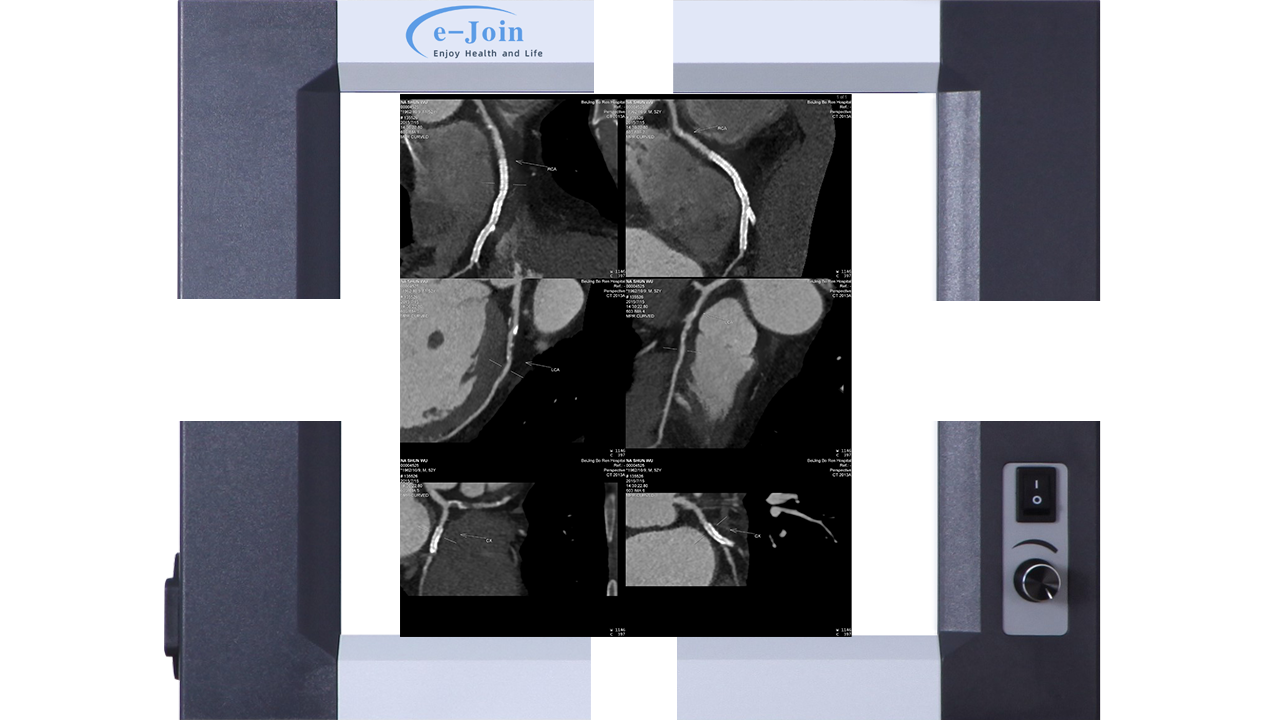

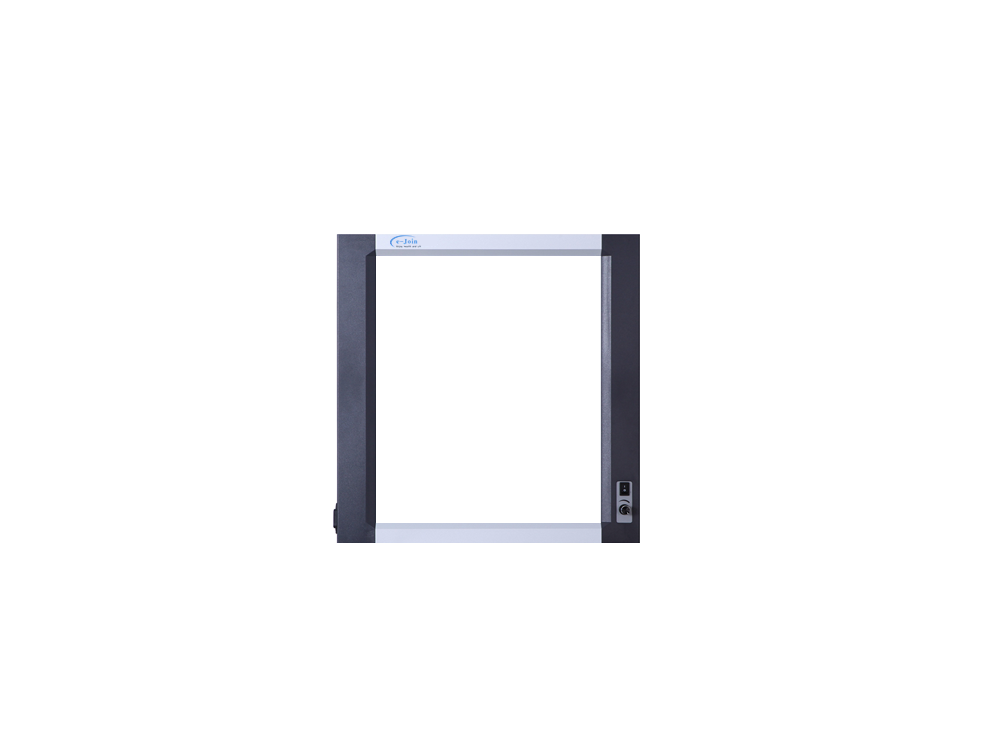

Medical X-ray Film Viewer (FV1417) is a wall-mounted and desktop X-ray film viewer with the advanced LED light source technology and side entry LED backlight, complying with Directive 89/336 EEC (Compatibility Electromagnetic). The front frame and the viewer body are made of high‐strength electrophoresis aluminum-alloy material, which is durable and perfect today and tomorrow. A streamline shape and ultra-thin design (Only 2.5cm) with brief style make the film viewer be modern. Single high‐strength ultra-thin medical X-ray dry film viewer (FV1417) is available to achieve the additional brightness preferred by some medical radiologists for reading X-ray films of different density without blinking in transmitted light. The radiographic technology showing the details of X-ray increases the accuracy of diagnosis by the symmetrical illumination of the film viewer.

Share to:

Basic Parameters

◊ Light Source: Matrix LED
◊ LED Lifespan: > 100,000hrs
◊ Light Uniformity: > 98%
◊ Brightness:>15,000 lux, >4,500 cd/㎡
◊ Power Supply Input: AC100-240V, 50/60Hz
◊ Frame (L × H × T)/mm: 485 × 495 × 45
◊ Viewing Area (W × H)/mm: 360 × 425(14″×17″)
◊ Power Consumption: 20 W

Features

■ Perfect light homogeneity.
■ Film Automatic Activation Switching.
■ An ON/OFF switch on the right front.
■ A switching power supply adaptor integrated.
■ All-around film holding rail for maximum viewing comfort.
■ Hard-wearing and fully recyclable when the light comes to the end of its life.
■ Special electronic light regulator allowing a very good light regulation from 10% to 100%.
■ Advanced film clamping part assure easy film insertion, reliable film clamping and easy film take‐off.

Advantages

♦ Used on worktables in the vertical or horizontal position.
♦ Predisposed for wall installation through expansion dowels in rooms as medical use.

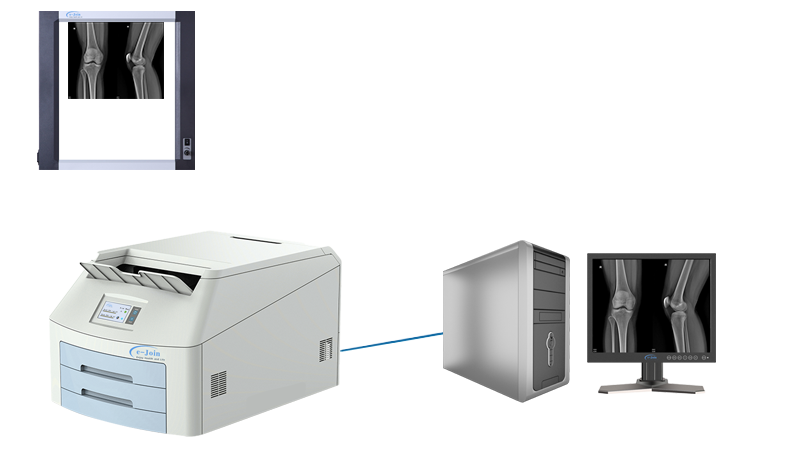

♦ High-quality film viewer for General X-ray diagnosis, CT and MRI film viewing, and Mammography diagnosis.
