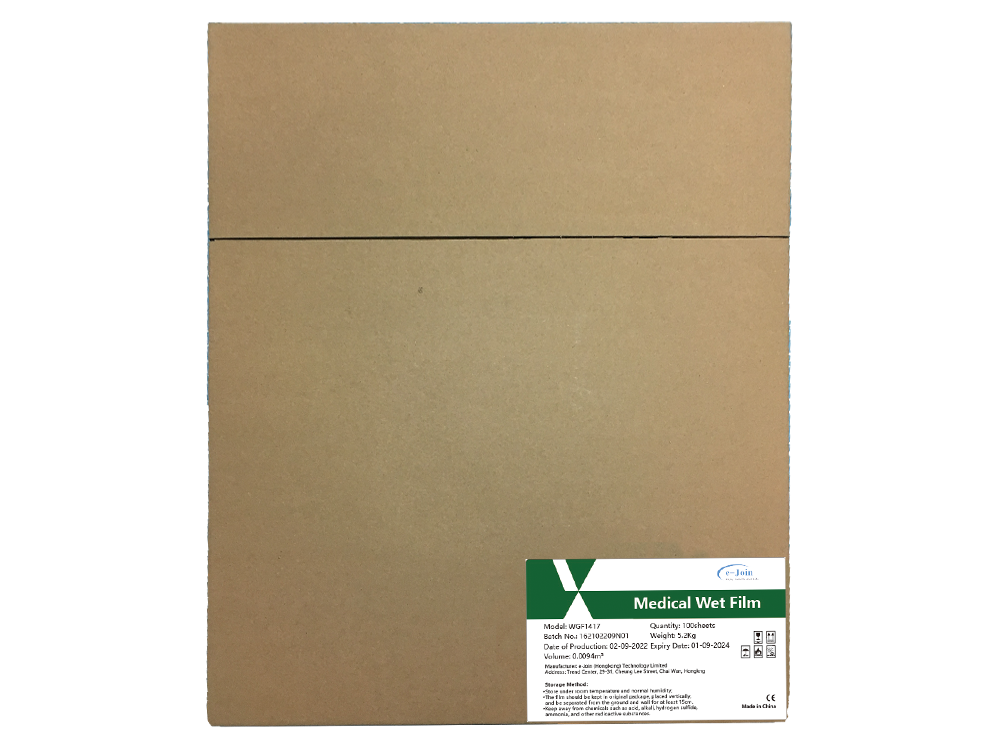

MWG-14x17in, Medical Wet X-ray Imaging Clear Green Sensitive Film (e-Join)

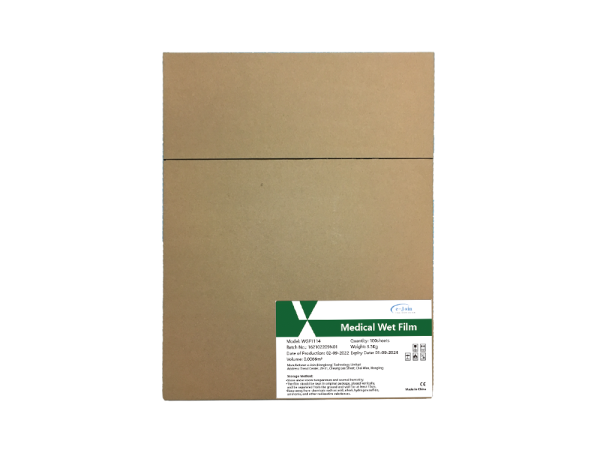

MWG-11x14in, Medical Wet X-ray Imaging Clear Green Sensitive Film (e-Join)

MWG-10x12in, Medical Wet X-ray Imaging Clear Green Sensitive Film (e-Join)

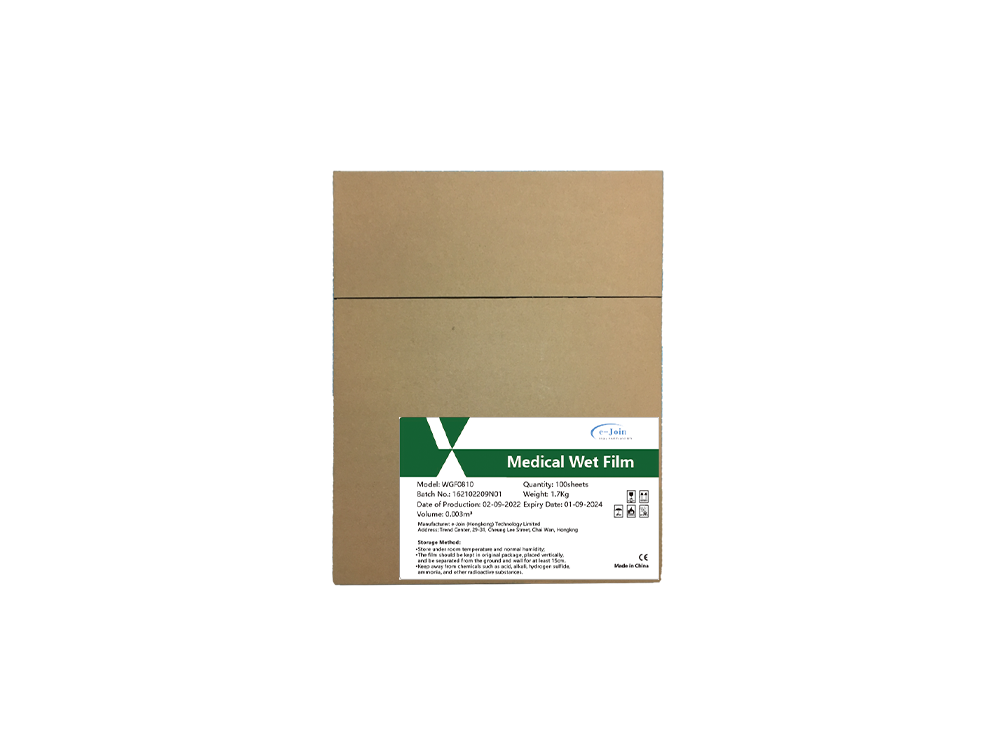

MWG-8x10in, Medical Wet X-ray Imaging Clear Green Sensitive Film (e-Join)

Medical Wet X-ray Imaging Clear Green Sensitive Film

High-quality medical wet imaging clear green sensitive film (MWG) is a general high-speed X-ray film with medium to high contrast, for use in general imaging radiology in combination with green-emitting intensifying screens. Each part of the film has been carefully designed into the ideal shape, satisfying the varied demands of diagnostic X-ray imaging. This film solution is suitable for use in high-speed screen/film systems and fit for use in all processing conditions, while maintaining a constant and high image quality. The flat crystal emulsion technology minimizes the crossover effect, and always provides a radiograph with exceptionally good resolution and excellent sharpness at a consistent high level, resulting in more perceptible details, even when the film is processed in weaker chemicals or less favorable conditions. Its dramatic improvement in stability makes quality control easier and more efficient even on a daily basis.

Share to:

Darkroom Handling

◊ The use of a special red safelight filter in conjunction with a 15-watt frosted bulb is recommended.
◊ It should be utilized and be positioned at least 2.5 m from the unloading/loading area and processor tray.
◊ Processing is accomplished in 90-second cycle processors. Extended cycle processing is possible when appropriate. It can be processed manually or in any conventional processor.
◊ The film should be handled with care. Creasing and buckling as well as physical pressure should be avoided.

Sizes and Packaging

■ Sheet size: 35×43cm(14×17in), 35×35cm(14×14in), 28×35cm(11×14in), 30×38cm(12×15in), 30×30cm(12×12in), 25×35cm(10×14in), 25×30cm(10×12in), 24×24cm(9.5×9.5in), 20×25cm(8×10in), 18×43cm(7×17in), 17×22cm(6.5×8.5in), 15×38cm(6×15in), 13×18cm(5×7in), 30×40cm, 30×35cm, 20×40cm, 24×30cm, 18×24cm, 30×90cm.

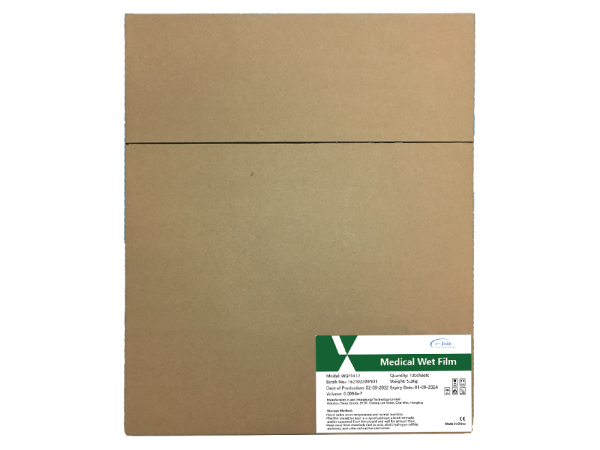

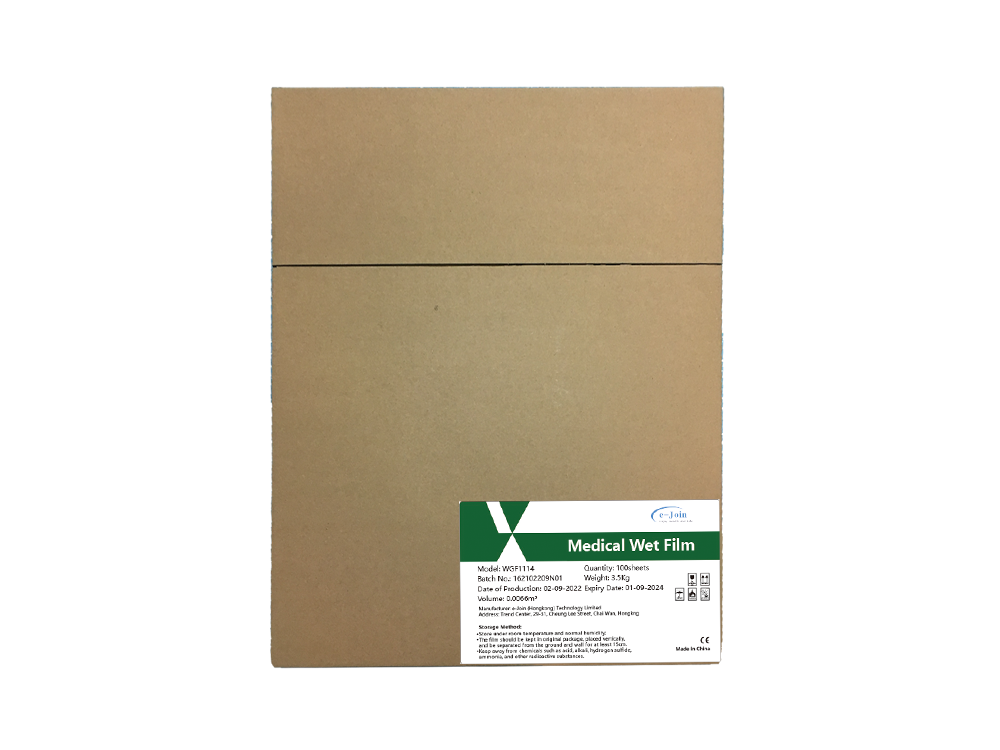

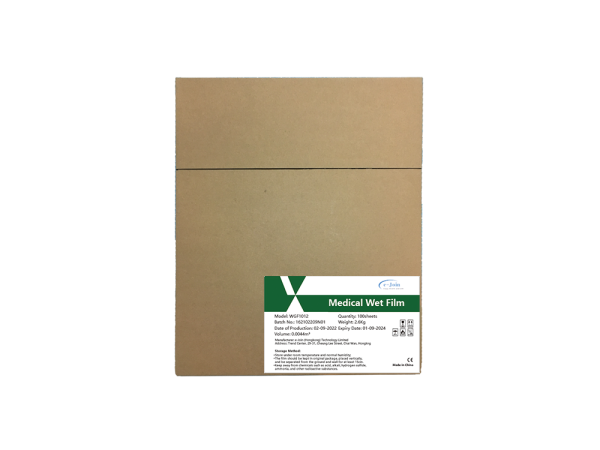

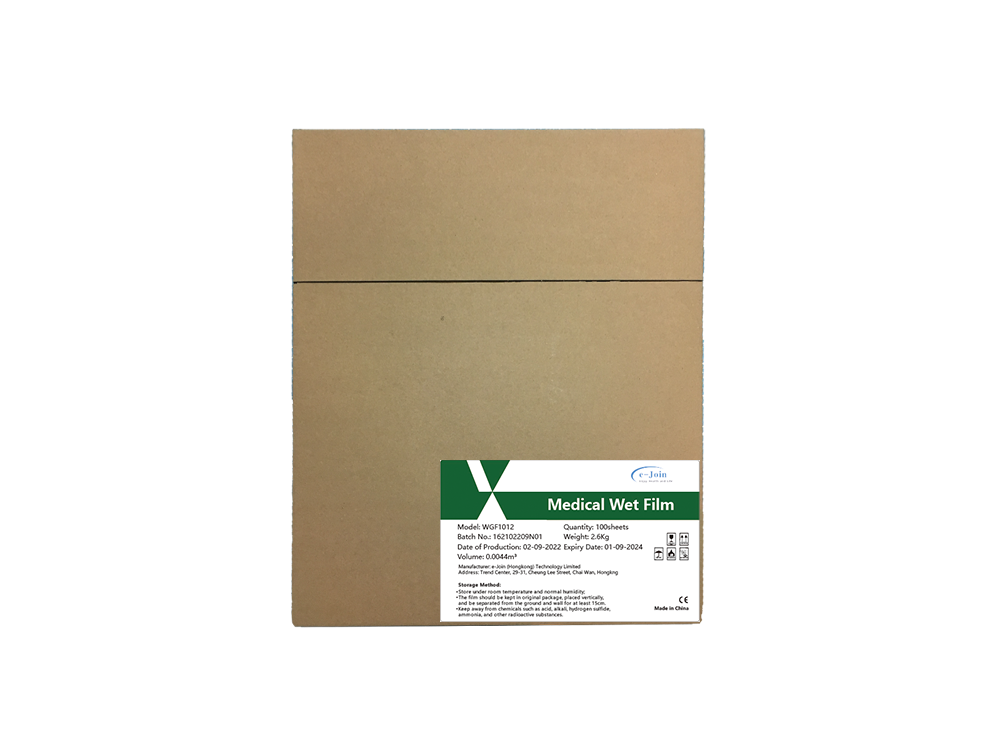

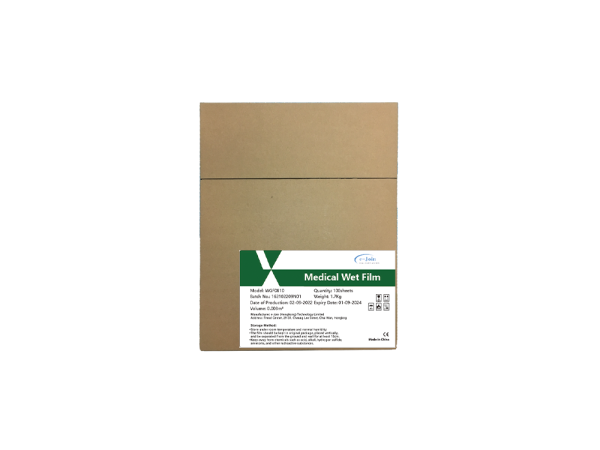

■ MWG film is available in all customary sizes in 100 sheets/box, and 10 boxes/ package.
■ Other packaging and sizes are available on special requirement.

Advantages

◙ Flat crystal technology for sharper images.
◙ Standard sizes optionally notched for daylight use.
◙ Suitable in all kinds of processors, daylight systems.
◙ High system speed with low fog and noise level.
◙ Excellent visualization across all density levels.
◙ Consistent image quality in all types of chemicals.
◙ Manual or automatic processing in standard cycle.

Applications

♦ The system speed of this film has been adapted for specific applications where high definition is required, according to the international guidelines.
♦ The sensitometric curve of the MWG Film features both a high toe contrast in the low-density areas of the image and a high maximum density, while the contrast in the middle section and in the shoulder of the curve is sufficient to enable excellent visualization of the varying density levels.
♦ This permits the use of MWG Film in applications such as skull, radiography chest, and abdomen as well as extremities and angiography, where it gives sharp and detailed images of even the smallest blood vessels as well as of bone structures.
