RG52

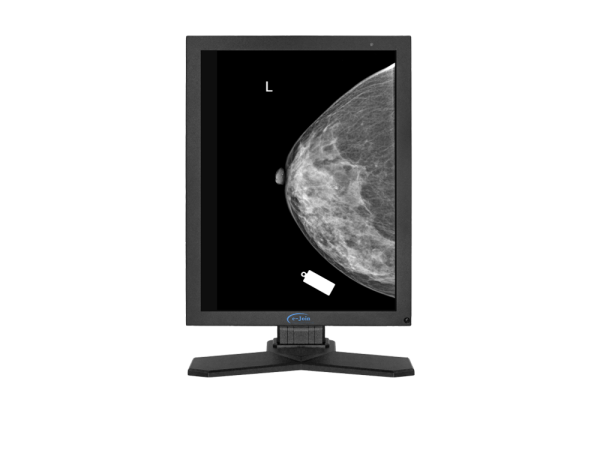

5M 21.3”, LED Medical Mammography Radiology X-ray Grayscale Display Screen Monitor

Cleared for radiology and mammography viewing and several unique imaging technologies, Medical Grayscale Monitor (RG52) is calibrated to meet the DICOM Part 14 standard for each grayscale tone. The 5-megapixel (1,536×2,048) monitor (RG52) offers a maximum brightness of 3,000 cd/㎡ to discern the most subtle image details for an accurate diagnosis, including mammography and breast tomosynthesis. LED medical mammography radiology x-ray grayscale display screen monitor (RG52) is suitable for distinguishing spiculated masses and the delicate shadows of calcifications, and reproduces large volume mammography images accurately with minimal thinning and patchiness. Furthermore, it’s also perfectly suited for smooth and efficient viewing of general radiology grayscale images in a comfortably high resolution. Featuring integrated stability, calibration, and uniformity technologies, it ensures that image quality, light output and DICOM compliance remain consistent over time.

Share to:

Basic Parameters

◊ Grayscale: 16 bits LUT
◊ Resolution: 1,536 × 2,048
◊ Display Ratio: 4:5
◊ Brightness: 3,000 cd/㎡
◊ Contrast Ratio: 2,000:1
◊ Signal Ports: DP×1, DVI-D×1, VGA×1
◊ Power Supply: DC 24V
◊ Power Consumption: ≤80W
◊ MTBF: >50,000 Hours

Signal Ports of HD LED Medical Digital Diagnostic Color Display Screen Monitor RC26
Brightness of LED Medical Mammography Radiology X-ray Grayscale Display Screen Monitor RG52

Features

■ High-bright, adjustable tint grayscales.
■ PACS in radiology and breast imaging on one display.
■ Front sensor for easy DICOM compliance.
■ Designed for general radiology and mammography diagnostic.
■ Steady images across the screen with brightness uniformity technology.

Advantages

♦ Optimum viewing of medical DICOM grayscale images.
♦ Handle cases with precision, thanks to a high calibrated luminance.
♦ A film clip, so you can use your display as a virtual light box to view dry films.
♦ Available for Full-Field Digital Mammography (FFDM), Digital Radiography (DR), Computed Tomography (CT), Magnetic Resonance Imaging (MRI), and Digital Subtraction Angiography (DSA).

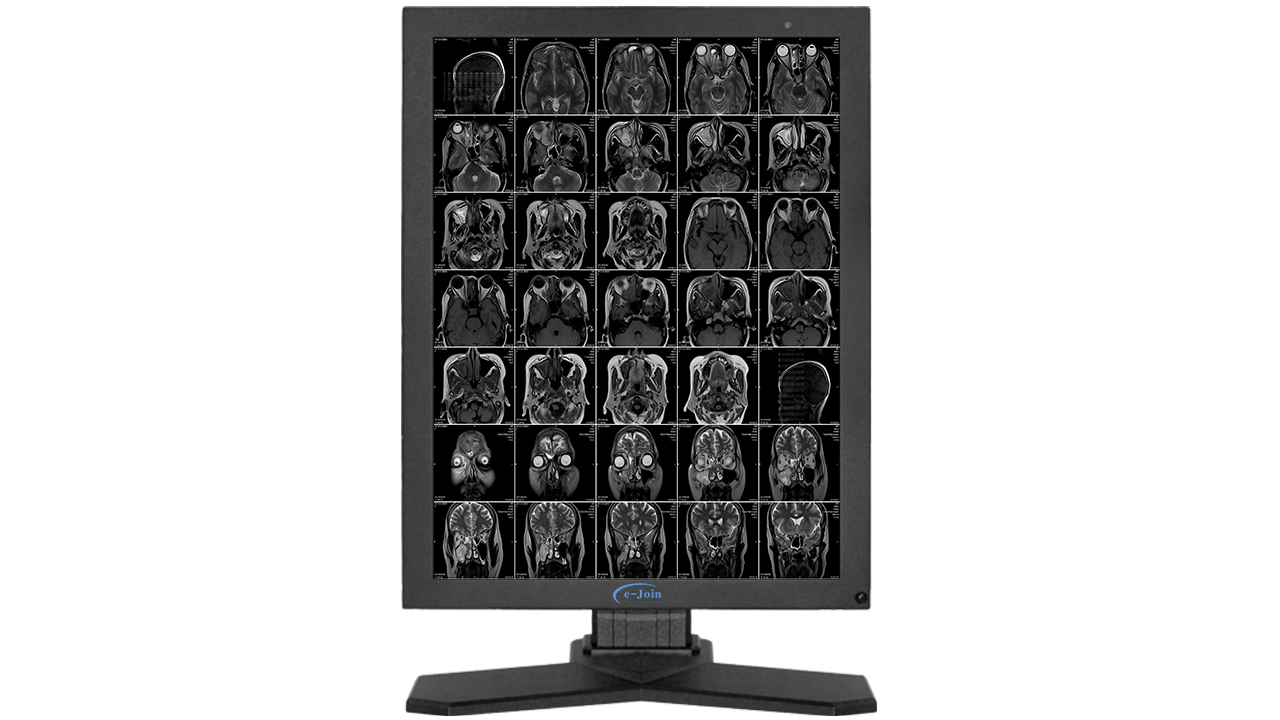

LED Medical Mammography Radiology X-ray Grayscale Display Screen Monitor RG52 for MRI Image
