RG32

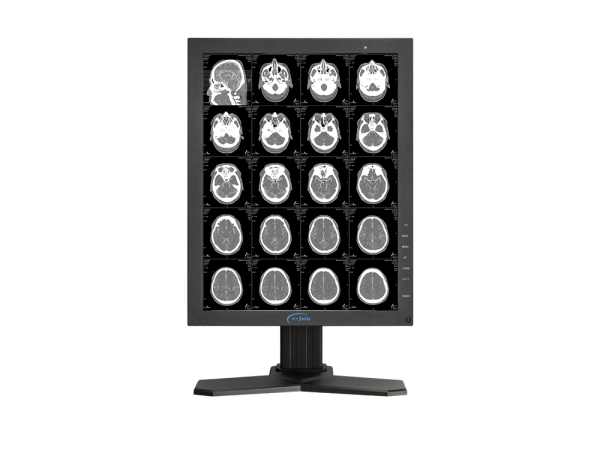

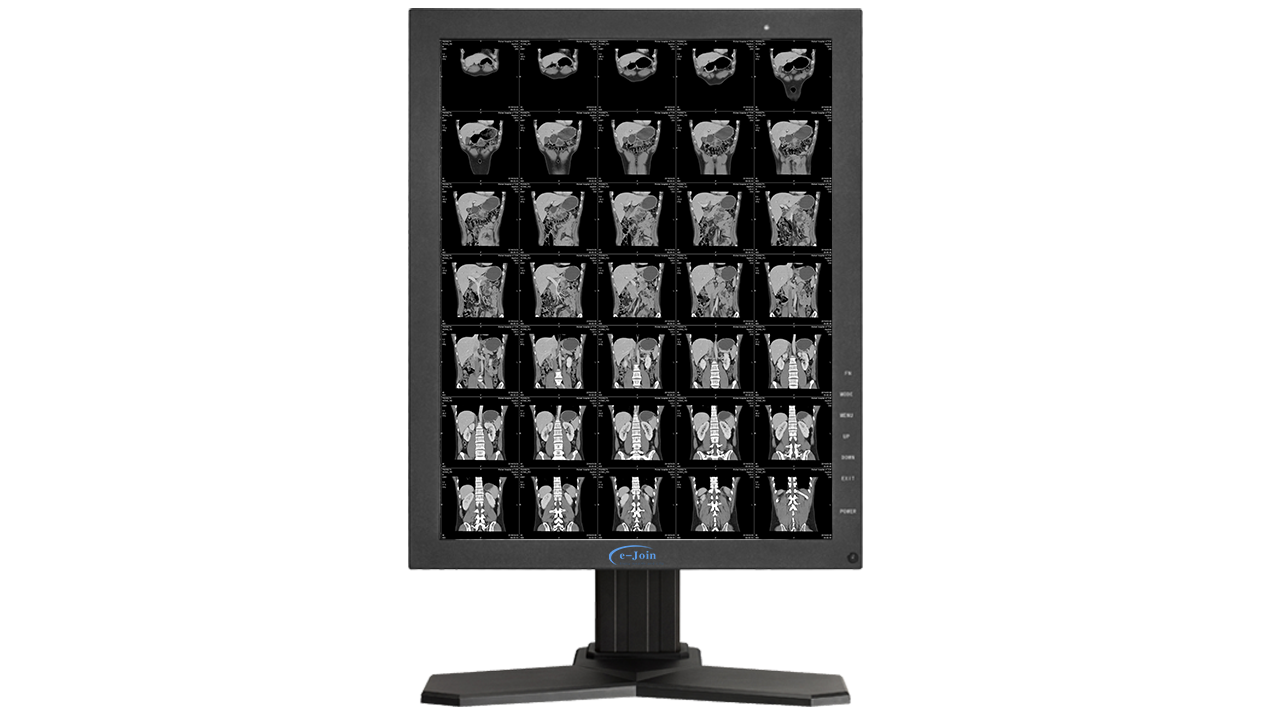

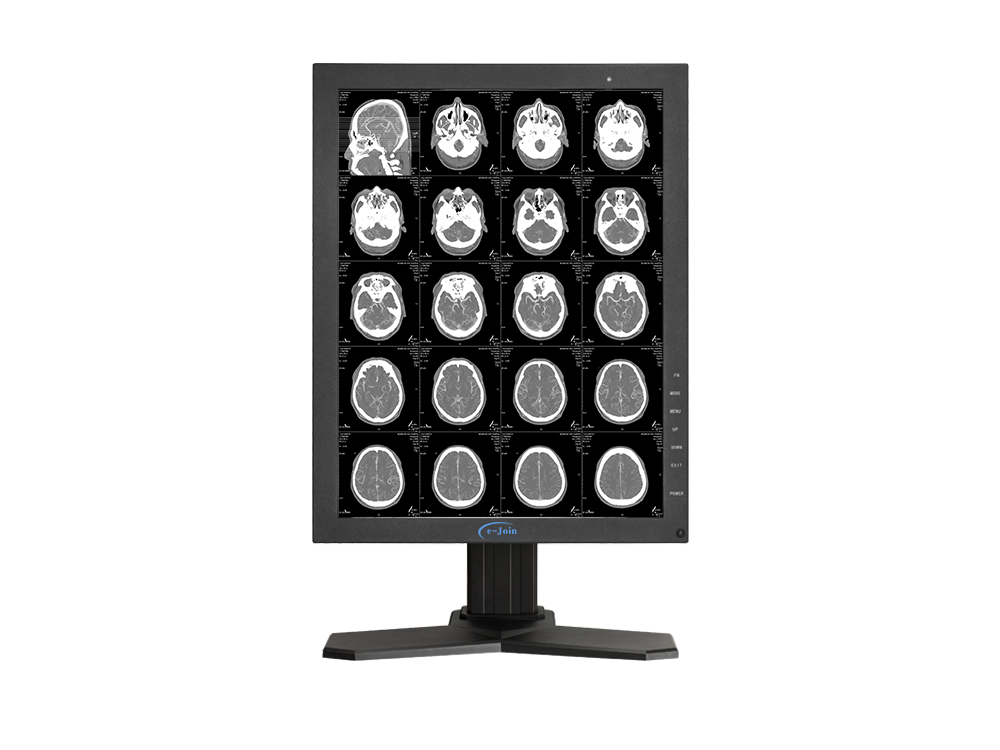

3M 21.3”, Desktop LED Medical Radiology X-ray Grayscale Display Screen Monitor

High-resolution 3-megapixel Medical Grayscale Monitor (RG32) is capable of fully displaying X-ray images, MRI and CT images with the high level of image quality and detail in DICOM Part 14 standard. The hands-free front-of-screen sensor on the monitor (RG32) works for Automated Quality Assurance and on-demand calibration to realize an accurate and consistent image representation of the source over the years with no latency. The innovative built-in luminance sensor realizes constant measurement and accurately stabilizes luminance on the screen to optimize image quality. Desktop LED medical radiology x-ray grayscale display screen monitor (RG32) features a DICOM preset mode to meet the diverse optimal needs of hospitals and clinics for confident diagnoses. These and other innovative features make DICOM images be faithfully reproduced with stable brightness and grayscale.

Share to:

Basic Parameters

◊ Grayscale: 16 bits LUT
◊ Resolution: 1,536 × 2,048
◊ Display Ratio: 3:4
◊ Brightness: 2,000 cd/㎡
◊ Contrast Ratio: 1,700:1
◊ Signal Ports: DP×1, DVI-D×1, VGA×1
◊ Power Supply: DC 24V
◊ Power Consumption: ≤60W
◊ MTBF: >70,000 Hours

Features

■ Easy Calibration with integrated front sensor.
■ Auto-sensing brightness leveling technology.
■ High brightness unveils more details in the image.
■ All regions of the screen have an even luminance.
■ Support for both portrait and landscape modes allow for multiple viewing options.

Advantages

♦ LED backlights, for efficient, long-lasting brightness.
♦ Clear, detailed image reproduction with high contrast ratio.
♦ Guard front sensor, to ensure 24/7 compliance to medical standards.
♦ Available for Digital Radiography (DR), Computed Tomography (CT), Magnetic Resonance Imaging (MRI), and Digital Subtraction Angiography (DSA).
