MRL1717

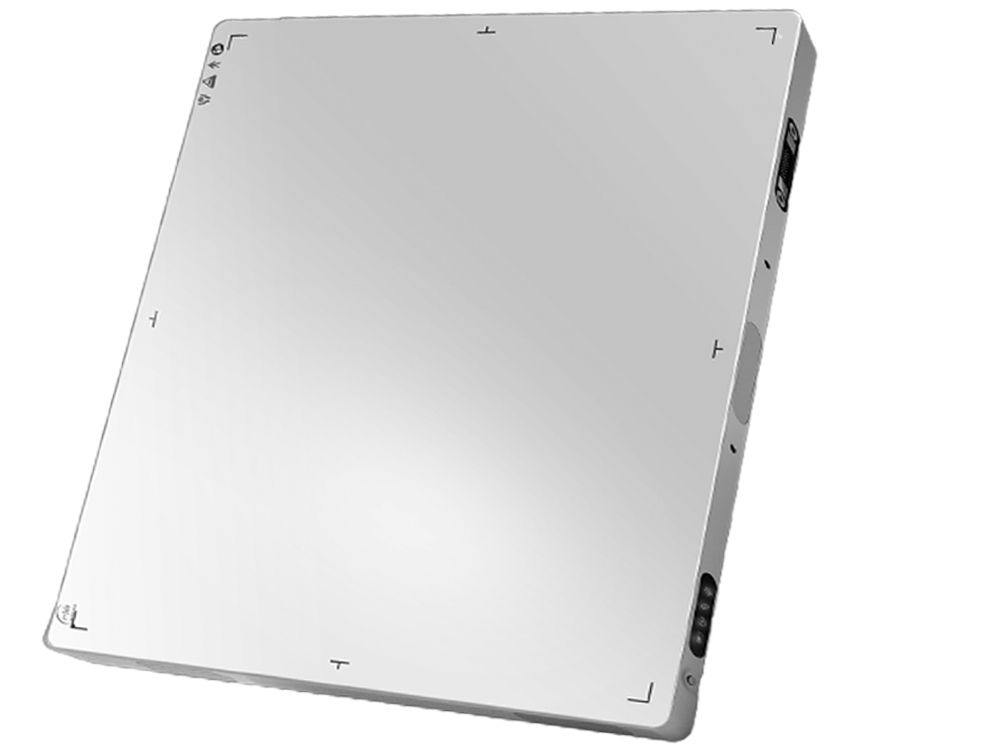

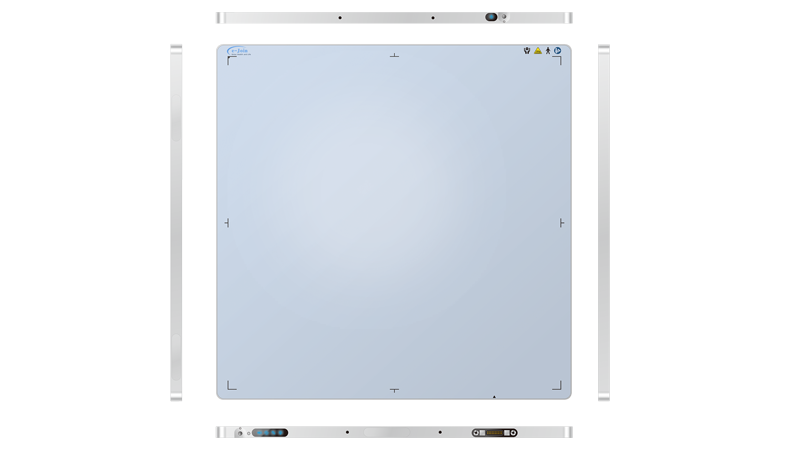

MRL1717, Front View of GOS or CsI Wireless Mobile Medical Digital X-ray Image Flat Panel Detector (e-Join)

MRL1717, Left View of GOS or CsI Wireless Mobile Medical Digital X-ray Image Flat Panel Detector (e-Join)

GOS or CsI Wireless Mobile Medical Digital X-ray Image Flat Panel Detector

Wireless mobile medical digital x-ray image flat panel detector MRL1717 uses a Gadolinium Oxysulphide Scintillator (GOS) for general radiography or Cesium Iodide Scintillator (CsI) for dose-sensitive applications to improve productivity, workflow, and reliability in radiographic imaging. This new sleek detector slides right into tabletop or wallstand buckys, and the powerful wireless design provides easy positioning for out-of-bucky exams. Its standard wireless performance eliminates the hassles and hazards of cables, and reduces the risk of infection. The 17×17 square shaped radiography cassette allows improved workflow by removing the requirement of switching the cassette horizontally or vertically during the examination process. It quickly and cost-effectively converts existing analog rooms or mobile system to direct radiography (DR) to create superb image quality, and to support greater diagnostic confidence.

Share to:

Basic Parameters

◊ Detector Technology: Amorphous Silicon
◊ Scintillator: CsI, GOS
◊ Active Area: 17 inch × 17 inch
◊ Pixel Pitch: 139 μm
◊ AD Conversion: 16 bits
◊ Pixel Matrix: 3,072 × 3,072
◊ Spatial Resolution: 3.6 lp/mm
◊ Full Image Time: 2 s (Wireless)

Features

■ Access Point (AP) mode capable.
■ IPX1 protection rating against ingress of dust and fluid.
■ LED lights offer improved feedback of detector status.
■ Battery hot swap for battery replacement without a reboot.
■ The detector docking stand enables fast full charging in approximately 2.5 hours per detector.

Instant Digital Retrofit

♦ Sharp trabecular and cortical bone.
♦ Make the move to DR image both simple and economical.
♦ Ideal for trauma sites, remote clinics, operating rooms, and ICU.
♦ Reduce stress and complexity for technologists, while maximizing comfort and care for patients.

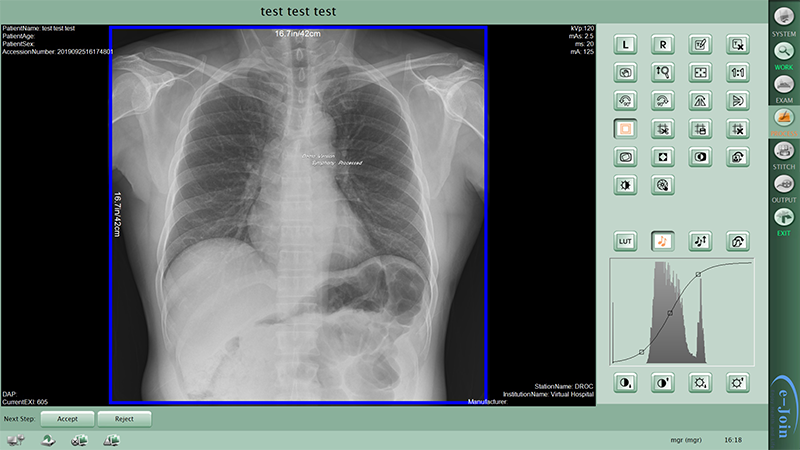

♦ Offers an optional Mini-PACS module with a broad tool set, allowing superb image management and analysis.
