MRD1417

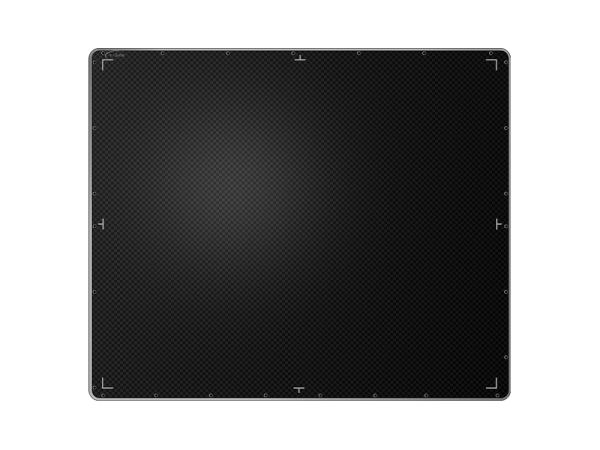

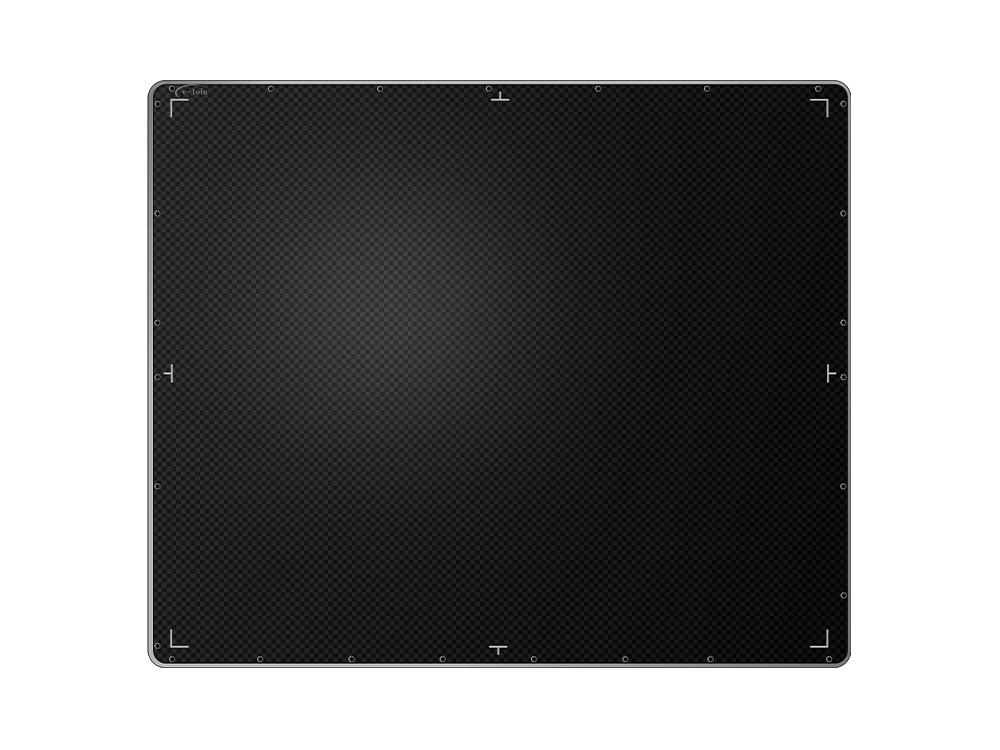

MRD1417, Front View of GOS or CsI Wired Fixed Medical Digital X-ray Image Flat Panel Detector (e-Join)

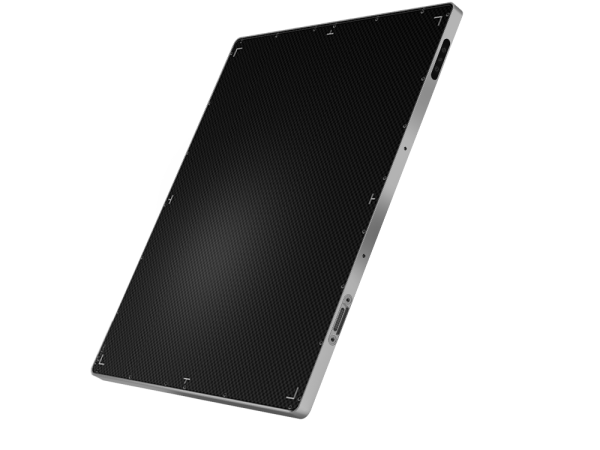

MRD1417, Left View of GOS or CsI Wired Fixed Medical Digital X-ray Image Flat Panel Detector (e-Join)

GOS or CsI Wired Fixed Medical Digital X-ray Image Flat Panel Detector

Wet film-based imaging system represents working with noxious-smelling chemicals and maintaining a darkroom. Computed radiography (CR) imaging system requires the extra step of scanning and digitizing each captured image. Direct radiography (DR) requires no steps for imaging and provides imaging results instantly. The efficiency in exam cycle improves clinical imaging outcomes such as shortened exam times and enhanced patient comfort. Utilizing existing conventional X-ray equipment, an in-room retrofit solution of DR could be proposed to get high image quality, rapid cycle time and eliminate the need to handle CR cassettes with a minimum configuration such as a GOS or CsI wired fixed medical digital x-ray image flat panel detector MRD1417. MRD1417 easily extends the image-capture life of analog X-ray system and realizes higher productivity and cost savings.

Share to:

Basic Parameters

◊ Detector Technology: Amorphous Silicon
◊ Scintillator: CsI, GOS
◊ Active Area: 14 inch × 17 inch
◊ Pixel Pitch: 139 μm
◊ AD Conversion: 16 bits
◊ Pixel Matrix: 2,560 × 3,072
◊ Spatial Resolution: 3.6 lp/mm
◊ Full Image Time: 1 s

Features

■ Fit in the existing X-ray cassette bin.
■ Carbon-fiber twill panel for improved handling.
■ Beam detect mode with cable-free, automatic capture activation.
■ Release a variety of image processing options including Tube and Line Visualization, Pneumothorax Visualization, EVP Plus, Bone Suppression, Grid Suppression, Long Length Imaging, Image Display Autocorrect, etc.

Instant Digital Retrofit

♦ Clear visualization of subtle details in the abdomen.
♦ Performs backups to CDs and USB drives for reliable off-line storage.

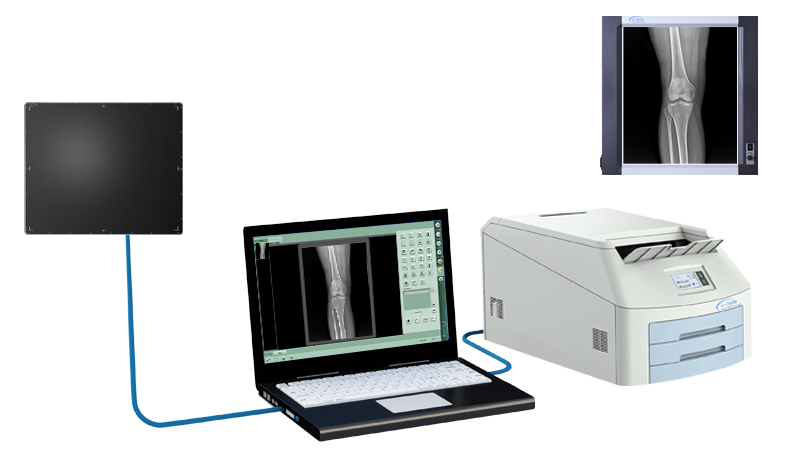

♦ Directly connects with any Radiological Information System (RIS), PACS systems, HIS via Image acquisition workstation.

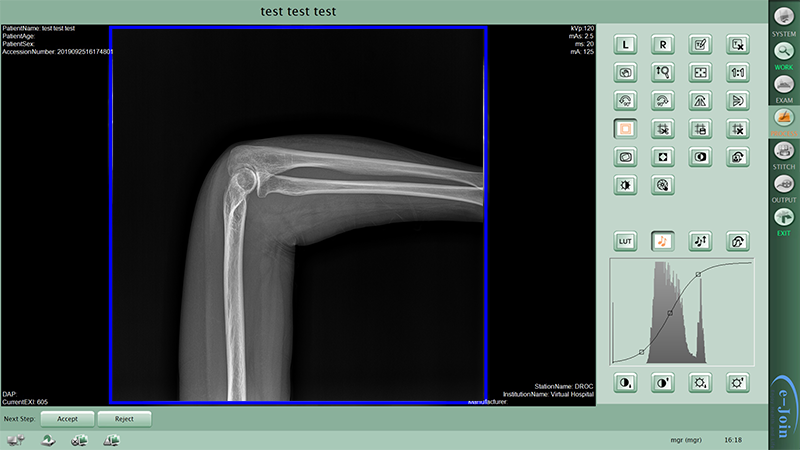

♦ Image acquisition workstation produces extraordinary image quality with consistent presentation.
♦ Faster calibration time, boot time, preview time and full resolution display time all to achieve improved workflow, prompt exam times, and superb ease of use.
