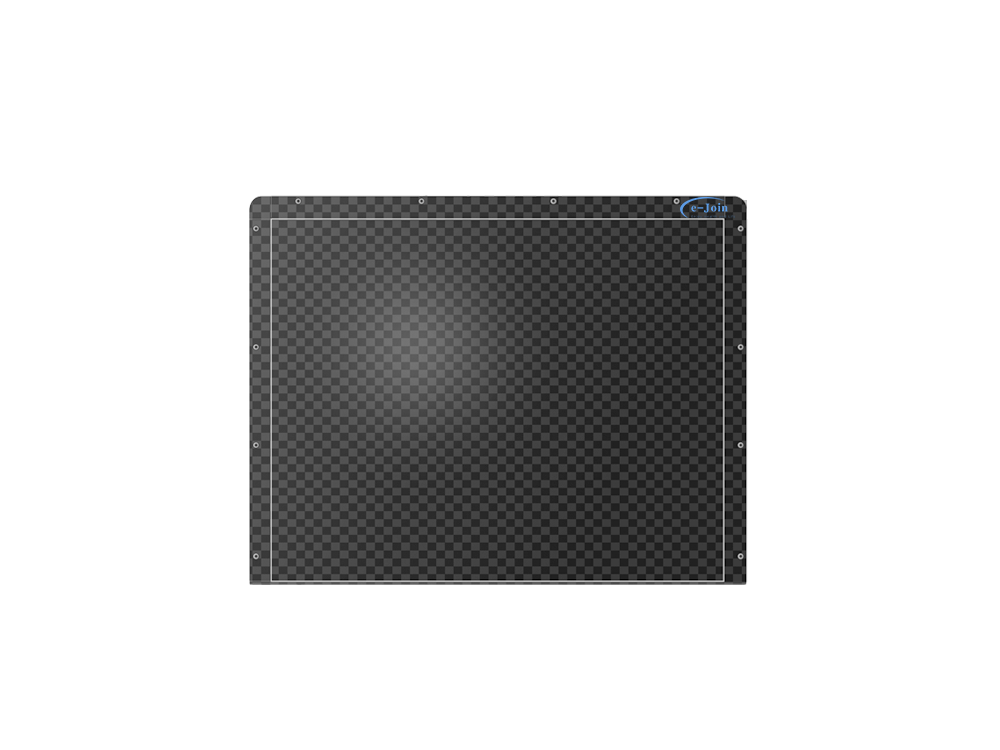

MMD1012

CsI Full Field Digital Wired Mammography Diagnostic X-ray Imaging Flat Plate

The performance of the detector, mostly determining the overall visualization of microcalcifications in a breast image in the early critical detection of breast cancer, is the most important component of a complete direct radiography (DR) mammography system. The 70-μm CsI full field digital wired mammography diagnostic x-ray imaging flat plate (MMD1012) delivers the excellent image contrast and high-quality image processing required for DR mammography, while offering the potential for significantly lower X-ray radiation dose and optimized X-ray beam. MMD1012 fitting into a standard bucky for conventional and computed radiography (CR) mammography makes the DR X-ray mammography retrofit easy and cost-effective for healthcare providers to upgrade their existing X-ray mammography modalities. The solution adopts a unique dose alignment procedure to calibrate the automatic exposure control (AEC) of the mammography X-ray units.

Share to:

Basic Parameters

◊ Detector Technology: Amorphous Silicon
◊ Scintillator: CsI
◊ Active Area: 10 inch × 12 inch
◊ Pixel Pitch: 70 μm
◊ AD Conversion: 16 bits
◊ Pixel Matrix: 3,488 × 4,356
◊ Spatial Resolution: 6.0 lp/mm
◊ Full Image Time: 1 s

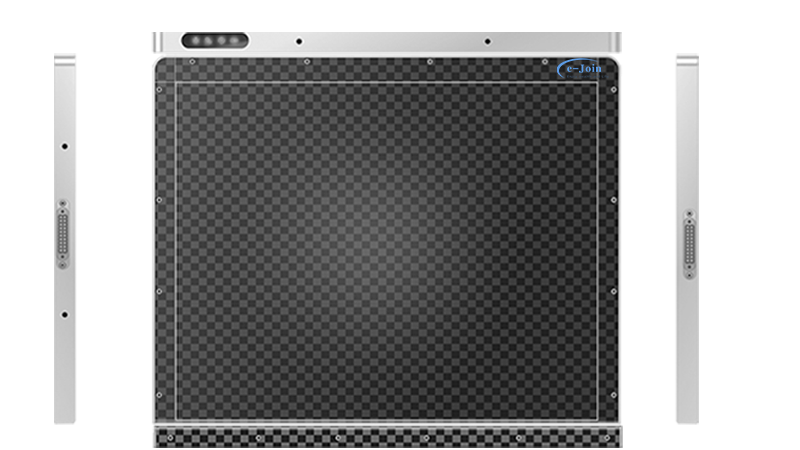

Charger Port of CsI Full Field Digital Wired Mammography Diagnostic X-ray Imaging Flat Plate MMD1012

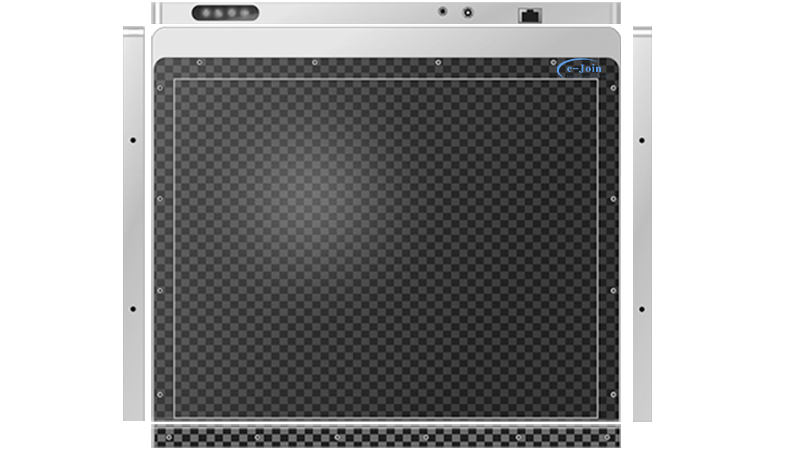

Ethernet Port of CsI Full Field Digital Wired Mammography Diagnostic X-ray Imaging Flat Plate MMD1012

Features

■ Faster exams and smoother workflow.
■ Increased productivity means higher patient throughput.
■ Large format (240 × 300 mm) and thin profile (15.0 mm).
■ Outstanding quality X-ray images offer an optimal basis for qualitative evaluation and radiology diagnosis.

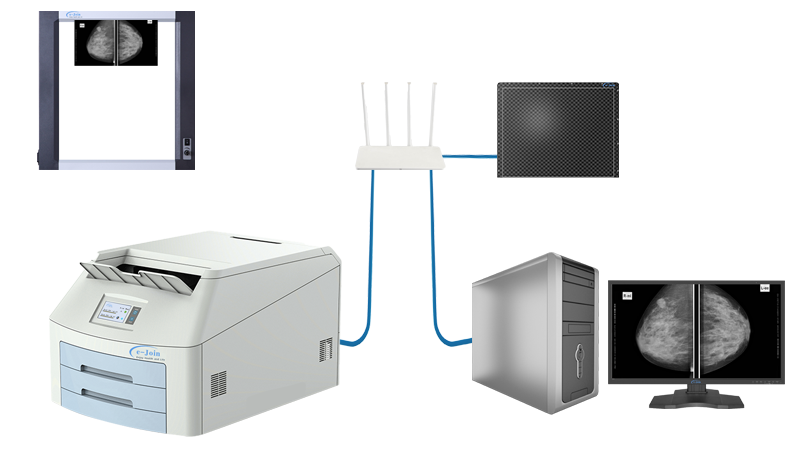

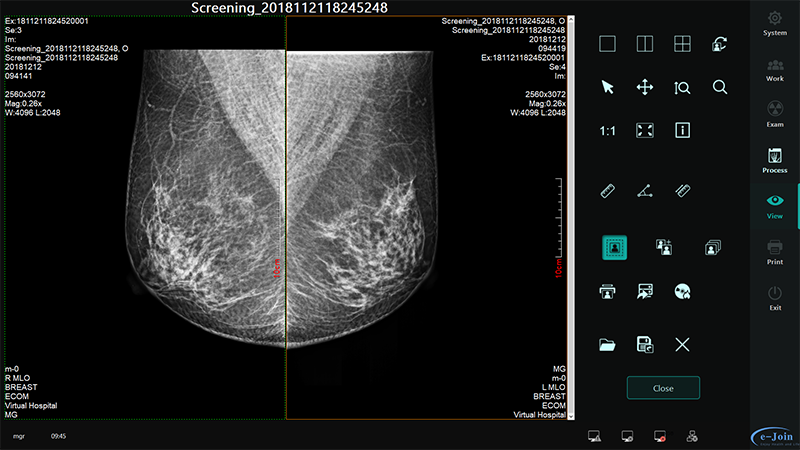

■ Offers an optional mini-PACS module with a broad tool set, allowing superb image management and analysis.

Instant Digital Retrofit

♦ Be up and running quickly.
♦ Be compatible with the Automatic Exposure Control (AEC).
♦ Enhances early detection assisting in saving precious lives.
♦ Easy handling with only a few clicks to generate the optimal X-ray image.
♦ Offers an affordable alternative to purchasing a DR mammography system, leveraging investments for the long term.
