MMD0810

CsI Full Field Digital Wired Mammography Diagnostic X-ray Imaging Flat Plate

Combining improved productivity and cost efficiency, the CsI full field digital wired mammography diagnostic x-ray imaging flat plate (MMD0810) with 75-μm pixel pitch is specially designed for direct radiography (DR) mammography and fits into a standard bucky used for analog mammography. Perfect digital upgrade is possible simply by inserting MMD0810 to an existing analog mammography device. With low noise electronics by unique reverse filtering technology, high Detective Quantum Efficiency (DQE) and Modulation Transfer Function (MTF) is achieved resulting in sharp and highly defined mammography imaging optimized for screening and detecting abnormalities such as microcalcifications. Based on such technology used in the field of breast cancer, its image quality paralleling any high-end Full-field Digital Mammography (FFDM) is possible. A mammography screening exam speeds up the exam time to enhance not only productivity, but also patient comfort.

Share to:

Basic Parameters

◊ Detector Technology: Amorphous Silicon
◊ Scintillator: CsI
◊ Active Area: 8 inch × 10 inch
◊ Pixel Pitch: 75 μm
◊ AD Conversion: 16 bits
◊ Pixel Matrix: 2,304 × 3,072
◊ Spatial Resolution: 5.8 lp/mm
◊ Full Image Time: 1 s

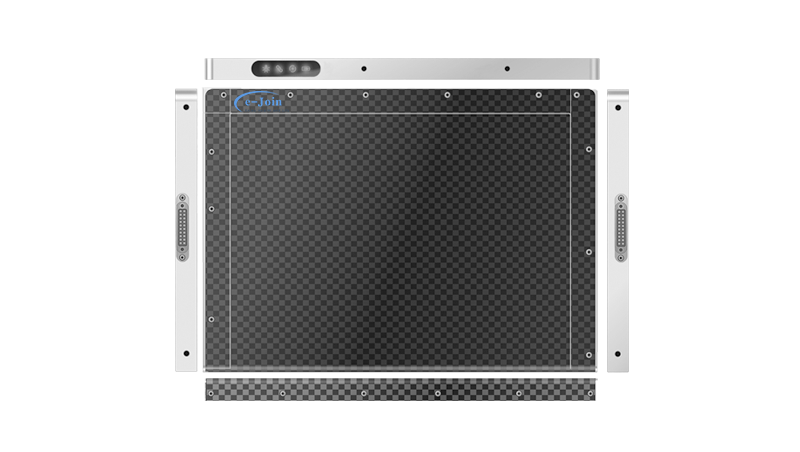

Charger Port of CsI Full Field Digital Wired Mammography Diagnostic X-ray Imaging Flat Plate MMD0810

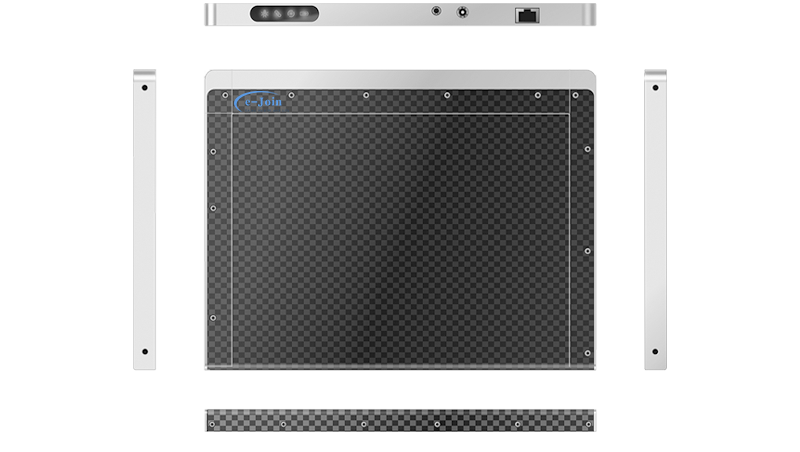

Ethernet Port of CsI Full Field Digital Wired Mammography Diagnostic X-ray Imaging Flat Plate MMD0810

Features

■ Reduced waiting time.

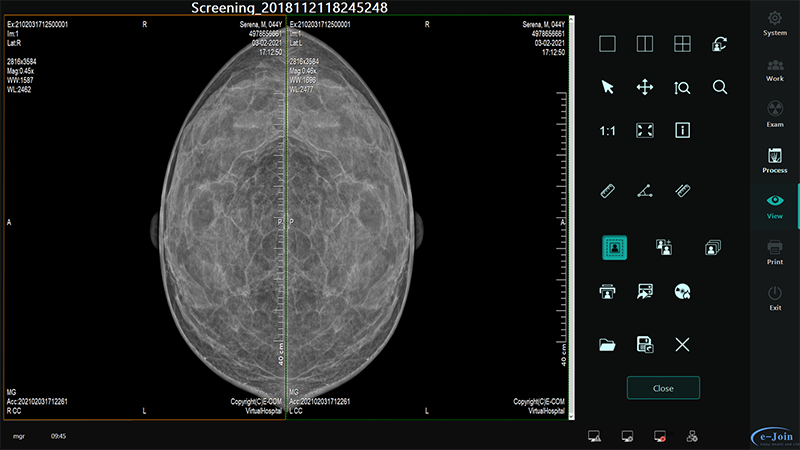

■ Specialized UI software for mammography.
■ Easy efficient, and optimized workflow in mind.
■ Minimum light scattering, maximum image quality.
■ Images are available for processing and evaluation directly after acquisition.

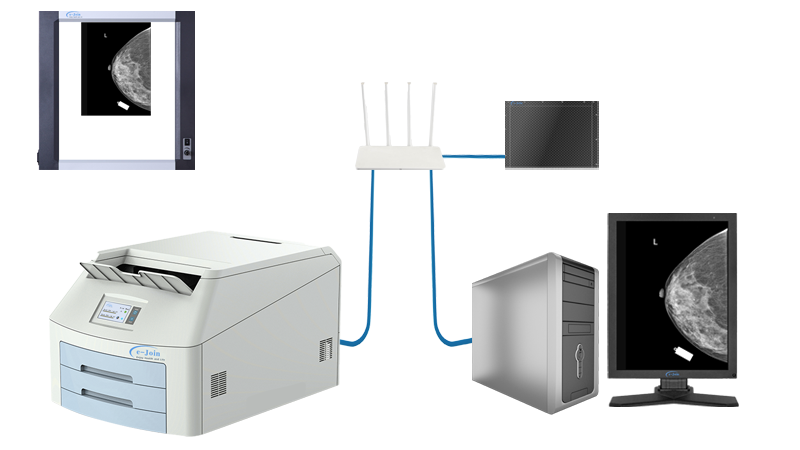

■ Offers an optional mini-PACS module with a broad tool set, allowing superb image management and analysis.

Instant Digital Retrofit

♦ The installation itself goes very quickly.
♦ Easily converts existing analog systems to digital technology.
♦ Specialized digital mammography imaging software for optimum user convenience.
♦ Easy cost-effective digitalization with premium mammography performance.
♦ Dose and X-ray beam quality are optimized for all breast thicknesses and compositions, automatically and intelligently.
