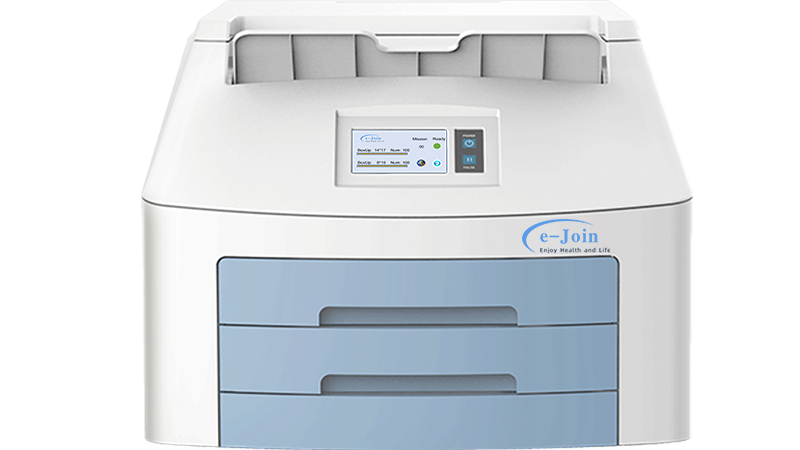

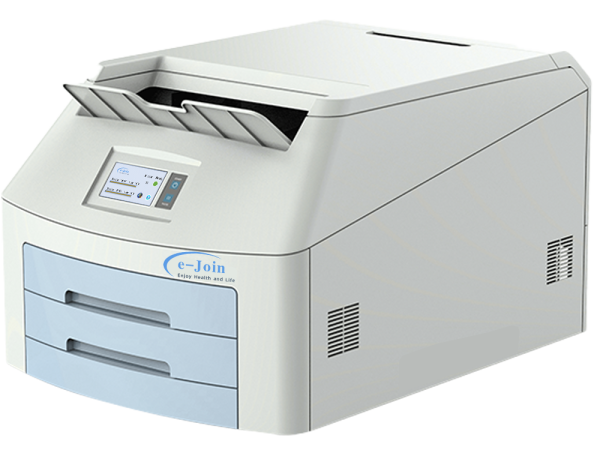

DT300

320 dpi High Quality Tabletop Digital Thermal DICOM Imaging Film Printer

Through intelligent matching of direct digital imaging technology, leading-edge thermal films, and dry printer in a convenient table-top size, the high-quality tabletop digital thermal DICOM imaging film printer DT300 is designed to stand at the heart of integrated compact solutions for limited spaces and close-to-modality film printing. This award-winning solid-state digital printer technology avoids the use of complex optical components to make the thermal system supremely flexible, reliable, and durable, intensifies imaging capability, and provides controlled consistent sharper image quality in a stable long-lasting platform. Supporting the X-ray imaging chain, while offering high image resolution to increase the diagnostic accuracy and fast throughput during peak hours to improve the efficiency of examination workflow, the all-in-one DT300 addressing most of centralized imaging requirements is the new axis for digital radiography imaging system.

Share to:

User-friendly Intuitive Design

To realize genuine user-friendly ease of use, simple operations are adopted by grasping the imager’s status quickly. The imager is beeping intermittently when DT300 is on power-up. A touch display operation screen with an intuitive icon-based user interface visibly indicates “Ready”, “Printing”, “Film Sheet”, “Film Size”, or “Warn”, etc. to reduce operator error and eliminate the need for training.

Universal Film Trays and Efficient Daylight Throughput

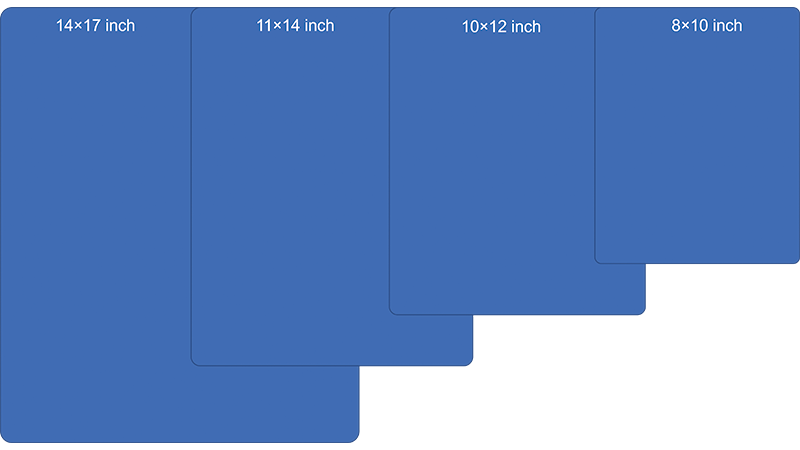

Equipped with two on-line media trays with four media sizes available: 8×10 inch (20×25 cm), 10×12 inch (25×30 cm), 11×14 inch (28×35 cm), and 14×17 inch (35×43 cm). An additional feature is DT300’s extremely quick cold-start time in 2 minutes maximum, so it enables an efficient throughput of 60 to 100 films per hour (depending on film size) with unrivalled image quality, excluding wet processing, no darkroom, and no messy chemicals.

Robust Lightweight Design

With an innovative, ergonomic design, DT300 features a compact footprint as small as 73×52 square centimeter and comes in less imposing body with 42 cm in height. The plastic casing on each side is formed in one piece so that the ideal centralized imager can maintain itself within the range of 45 Kg without any loss of physical strength. It can be set on a tabletop or workbench in a brightly lit room, so as to be particularly suitable for the most space-restricted environments.

MRI Image of 320 dpi High Quality Tabletop Digital Thermal DICOM Imaging Film Printer DT300

X-ray Chest Image of 320 dpi High Quality Tabletop Digital Thermal DICOM Imaging Film Printer DT300

Direct Connection to DICOM Network

Involving the high-resolution capability of 320 dpi at a spot size of 75 µm, and parallel output of 12-bit density resolution, DT300 allows instantaneous communication with any devices linked to the DICOM network to enable printing on all types of applications: Computed Radiography (CR), Digital Radiography (DR), mini-PACS, Computed Tomography (CT), Magnetic Resonance Imaging (MRI), and Digital Subtraction Angiography (DSA).
