Configuration
Default Configuration

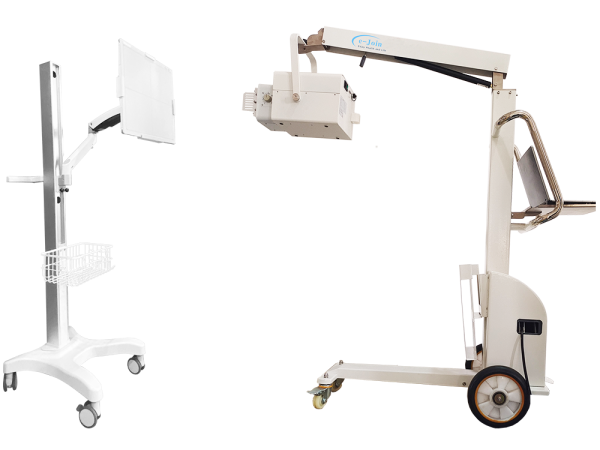

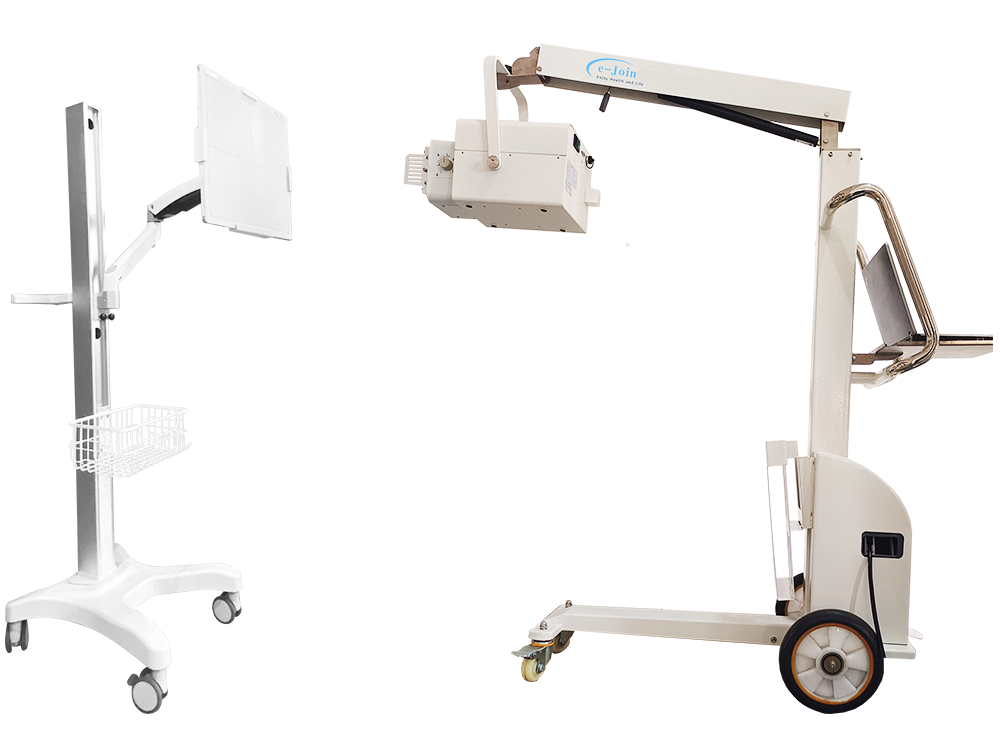

► 14″×17″ wireless cesium digital detector in carbon-fiber housing
► High frequency 5.6kW AC powered X-ray generator
► Ruggedized laptop loaded with DICOM 3.0 compliant imaging workstation
► Portable stand for X-ray generator
► Upright portable digital detector holder
► Remote handheld exposure switch
Optional Configuration
◊ High frequency 5.6kW battery-powered X-ray generator
◊ Wireless digital detector (17″×17″, CsI) in carbon-fiber housing
◊ Tethered digital detector (14″×17″ or 17″×17″, CsI or GOS) in carbon-fiber housing
Features
■ High imaging output reduces exposure times, virtually eliminating any motion blurring.
■ High frequency technology creates clean diagnostic imagery and provides a reliable utilization of the system.
■ Quick folding and unfolding by gas spring technology makes single case transport easy between sites.
■ User-friendly operation, high mobility, and extremely easy to maneuver.
■ Compact, rugged, and functional design with superb ergonomics and consistent performance under extreme operating conditions.
Enter

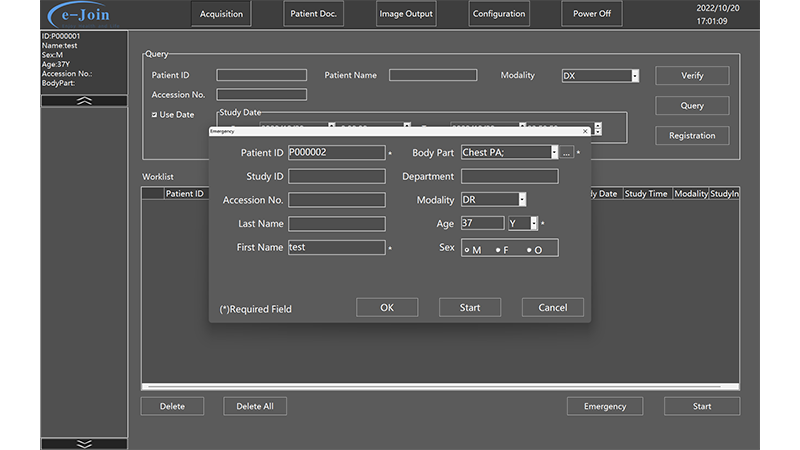

Register

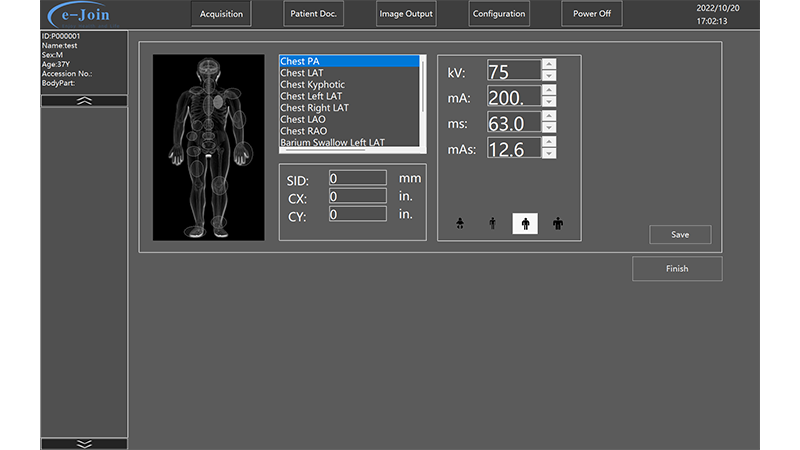

Exposure

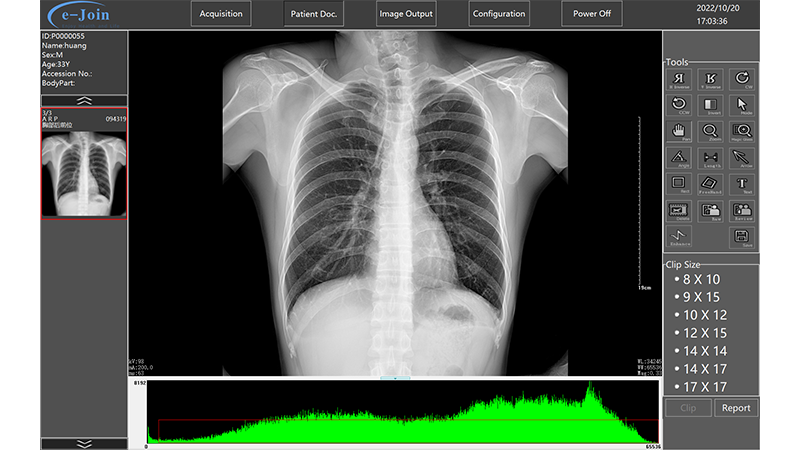

Processing

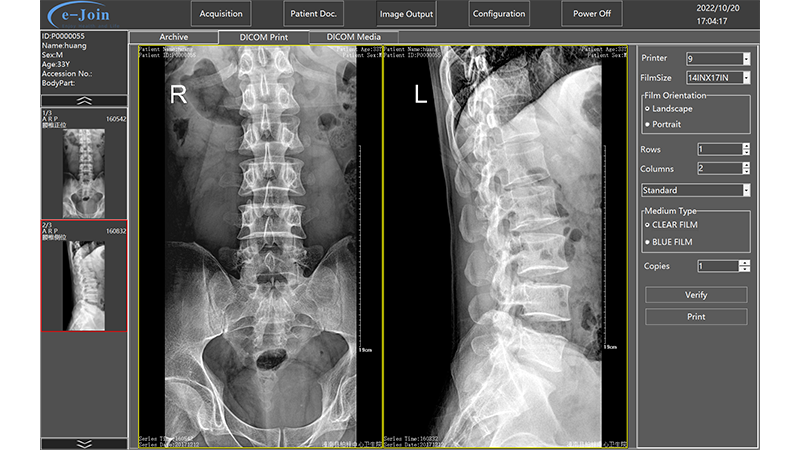

Printing
Application
♦ Widely used in the examination and radiology diagnosis of human limbs in patient wards or operating room.
♦ Suitable for medical institutions such as hospitals, clinics, physical examination centers, ambulances, etc.
♦ Used as a stand-alone X-ray workstation, sports medicine and veterinary medicine.
