YS-138LK

138-Liter Stable Reliable Medical Cooled Incubator

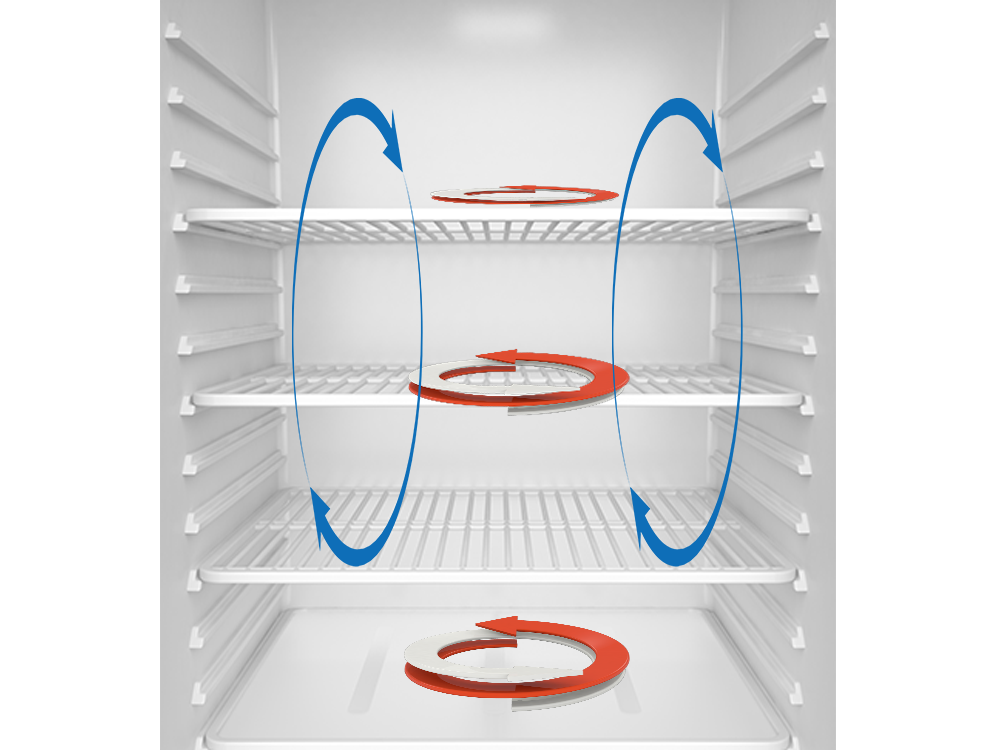

Stable reliable medical cooled incubator (YS-138LK) is not only a complete and integrated refrigerator for pharmaceuticals, medicines, and temperature-sensitive biologicals, but also suitable for the stable and reliable laboratory requirements, particularly under a full load and large batch throughputs. Including a high-performance refrigeration system with mechanical convection, the incubator (YS-138LK) provides even horizontal airflow across the solid, adjustable shelves at each shelf level to maintain an ideal uniform temperature range for clinical research, pharmaceutical and industrial use from 4°C to 38°C. The medical-grade refrigerator features microprocessor-controlled setpoints, temperature-sensitive auto-defrost systems, temperature monitoring, and convenient glass door for the easy identification and access of pharmaceuticals, reagents, and other materials.

Share to:

Basic Parameters

◊ Volume: 138L
◊ Noise: 39dB(A)
◊ Climate Type: N / SN
◊ Product Form: Vertical
◊ Rated Voltage: AC220V
◊ Heating Power: 170W
◊ Refrigeration Power: 85W
◊ Temperature Range: 4 ~ 38 ℃
◊ Commodity Weight: 40Kg
◊ Overall Dimension: 540 × 545 × 833mm
◊ Refrigerant Consumption: R600a(55g), fluorine-free

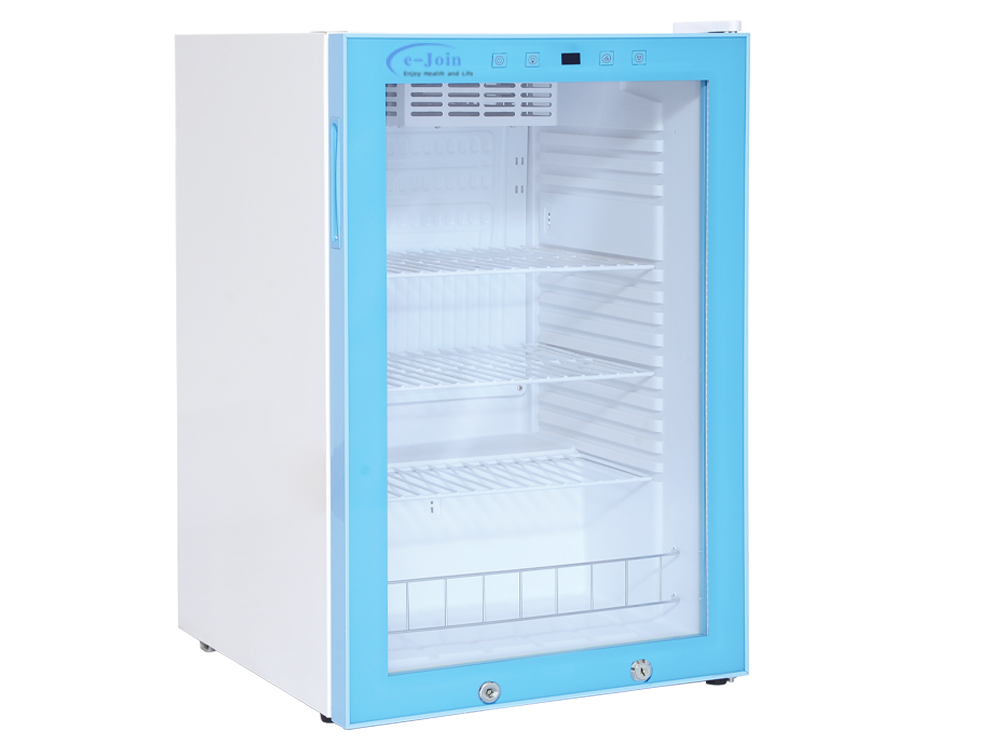

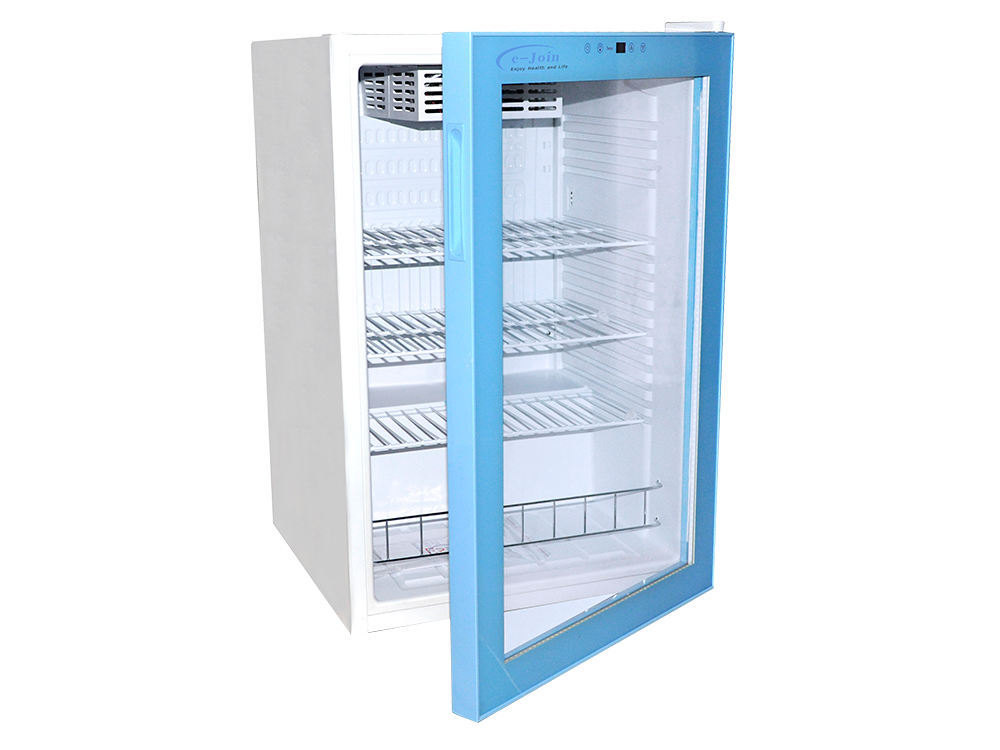

Appearance of 138-Liter Stable Reliable Medical Cooled Incubator YS-138LK
138-Liter Stable Reliable Medical Cooled Incubator YS-138LK with Innovative Compressor Technology

Innovative Compressor Technology

The Variable Drive (V-Drive) compressor, available on FYL-YS Series refrigerators, is designed to continually provide uniform cold air flow distribution throughout the chamber to ensure temperature uniformity – essential for validated storage requirements in the lab or clinical environment. The temperature uniformity throughout the incubator ensures that all samples can be stored in identical conditions, even when fully loaded. Where the standard compressor operates in a binary, full-power or off cycle, the innovative V-Drive runs at variable speeds as required to achieve optimal cooling capacity. Combined with an automated tuning control, the V-Drive compressor adjusts cooling power to precisely meet the needs required by temperature conditions inside and outside of the unit, delivering a leap forward in performance and energy efficiency without compromising protection.

Designed for the Following Industries

FYL-YS Series feature convenient, fully extendable, and adjustable basket drawers. The bright energy-saving LED interior light assists in easy sample access and identification. It can also be controlled from the control display panel. Its intuitive-to-operate, easy-to-access and easy-to-read user interfaces remove the guesswork and prevent operational mishaps. The built-in adaptive controller system utilizes mutli-sensor detection to deliver precise temperature control. Fitted with standard door locks to keep an additional level of security for the precious sample storage, FYL-YS Series models are also designed to meet safety requirements for cold storage of volatiles and storage in hazardous environments. To combat annoying frost during low temperature operation, the cycle automatic defrost system ensures that defrost occurs only when necessary and is not based on time. This defrost system runs by constantly monitoring refrigeration temperature increase during defrost, ensuring that this is minimal with no temperature spikes.

Stable Reliable Medical Cooled Incubator for Diagnostic Kits & Reagents

Diagnostic Kits & Reagents

Stable Reliable Medical Cooled Incubator for Enzymes

Enzymes

Stable Reliable Medical Cooled Incubator for Clinical Applications

Clinical Applications

Stable Reliable Medical Cooled Incubator for Molecular Biology

Molecular Biology

Stable Reliable Medical Cooled Incubator for Industrial Testing

Industrial Testing

Stable Reliable Medical Cooled Incubator for Whole Blood & Plasma

Whole Blood & Plasma

Stable Reliable Medical Cooled Incubator for Vaccines & Pharmacies

Vaccines & Pharmacies

Stable Reliable Medical Cooled Incubator for Biologics

Biologics

Stable Reliable Medical Cooled Incubator for Flammable Material Storage

Flammable Material Storage
