YS-100LK

100-Liter Stable Reliable Medical Cooled Incubator

Stable reliable medical cooled incubator (YS-100LK) employs advanced cooling technologies to offer measurably dependable performance including exceptional temperature uniformity, and temperature stability. The incubator (YS-100LK) is specially designed for heat-sensitive media to comply with pharmaceutical regulations in long-term and stable continuous operation. Temperatures remain stable wherever media are stored, even in a fully loaded chamber. A thermistor sensor monitors temperature inside the chamber, while microprocessor controls make an accurate set temperature be maintained. Even with frequent door openings, the circulation fan working with compressor on/off system provides rapid temperature recovery for a stable preservation room unaffected by ambient temperature. Moreover, it delivers outstanding quality in reliability, durability, ergonomics, and environmental sustainability.

Share to:

Basic Parameters

◊ Volume: 100L
◊ Noise: 39dB(A)
◊ Climate Type: N / SN
◊ Product Form: Vertical
◊ Rated Voltage: AC220V
◊ Heating Power: 170W
◊ Refrigeration Power: 85W
◊ Temperature Range: 4 ~ 38 ℃
◊ Commodity Weight: 31Kg
◊ Overall Dimension: 480 × 470 × 843mm
◊ Refrigerant Consumption: R600a(55g), fluorine-free

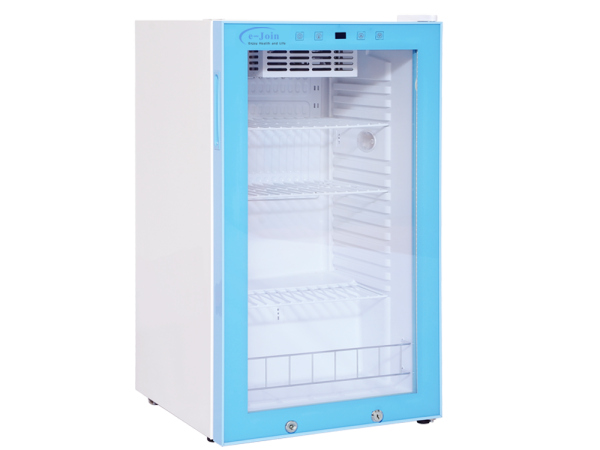

Appearance of 100-Liter Stable Reliable Medical Cooled Incubator YS-100L

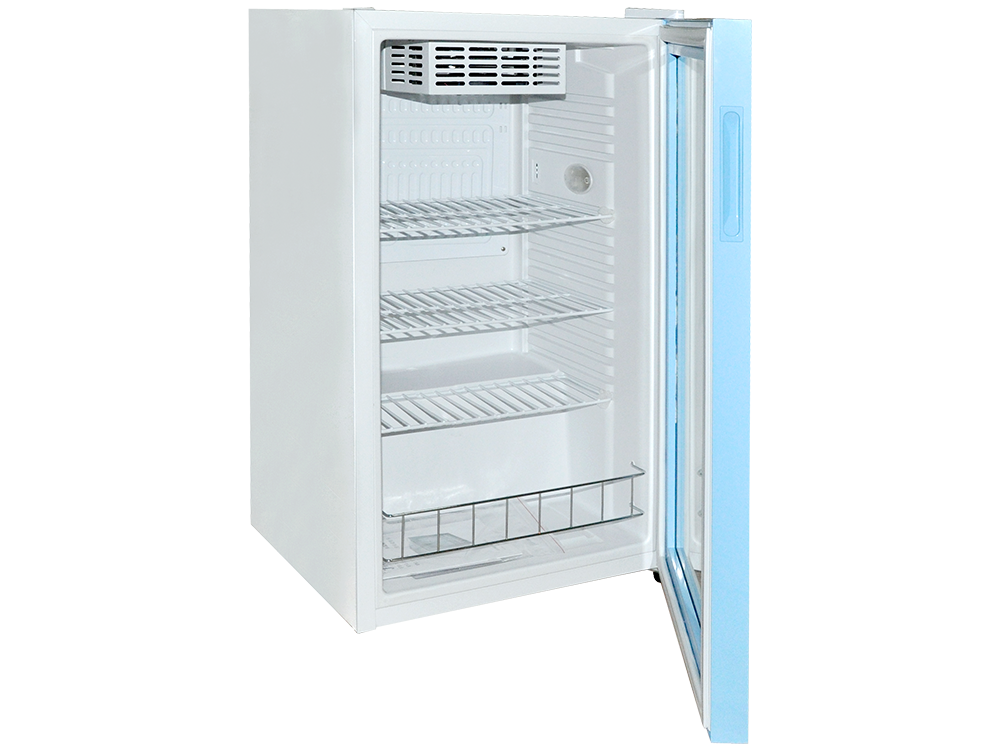

Appearance of 100-Liter Stable Reliable Medical Cooled Incubator YS-100LK with Fast Door Opening Recovery

Fast Door Opening Recovery

Frequent door openings or samples being added to a refrigerator create a substantial heat load burden, and the constant monitoring and adjustment control system detects the activity and increases the drive speed. Fan-forced air circulation as well as large excess refrigeration cooling capacity promotes temperature uniformity and brings out-of-range temperatures back to the setpoint quickly to minimize fluctuation, and further to ensure a stable environment for samples. This cooling speed of faster door-opening recovery is especially important for busy laboratories and biological samples with a low tolerance for temperature fluctuations found in models with compressors that cycle on/off.

Designed for the Following Industries

FYL-YS Series feature convenient, fully extendable, and adjustable basket drawers. The bright energy-saving LED interior light assists in easy sample access and identification. It can also be controlled from the control display panel. Its intuitive-to-operate, easy-to-access and easy-to-read user interfaces remove the guesswork and prevent operational mishaps. The built-in adaptive controller system utilizes mutli-sensor detection to deliver precise temperature control. Fitted with standard door locks to keep an additional level of security for the precious sample storage, FYL-YS Series models are also designed to meet safety requirements for cold storage of volatiles and storage in hazardous environments. To combat annoying frost during low temperature operation, the cycle automatic defrost system ensures that defrost occurs only when necessary and is not based on time. This defrost system runs by constantly monitoring refrigeration temperature increase during defrost, ensuring that this is minimal with no temperature spikes.

Stable Reliable Medical Cooled Incubator for Diagnostic Kits & Reagents

Diagnostic Kits & Reagents

Stable Reliable Medical Cooled Incubator for Enzymes

Enzymes

Stable Reliable Medical Cooled Incubator for Clinical Applications

Clinical Applications

Stable Reliable Medical Cooled Incubator for Molecular Biology

Molecular Biology

Stable Reliable Medical Cooled Incubator for Industrial Testing

Industrial Testing

Stable Reliable Medical Cooled Incubator for Whole Blood & Plasma

Whole Blood & Plasma

Stable Reliable Medical Cooled Incubator for Vaccines & Pharmacies

Vaccines & Pharmacies

Stable Reliable Medical Cooled Incubator for Biologics

Biologics

Stable Reliable Medical Cooled Incubator for Flammable Material Storage

Flammable Material Storage
