RC85

8M 31.5”, Big HD HDMI LED Medical Digital Diagnostic Color Display Screen Monitor

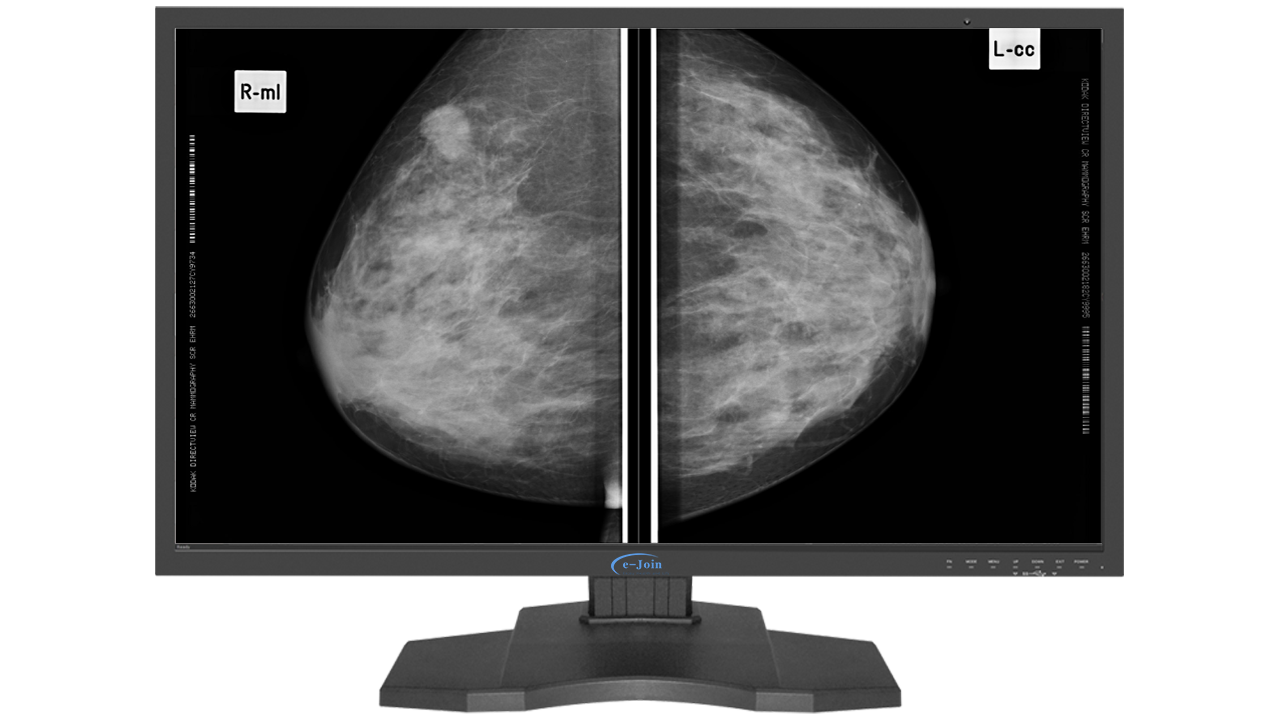

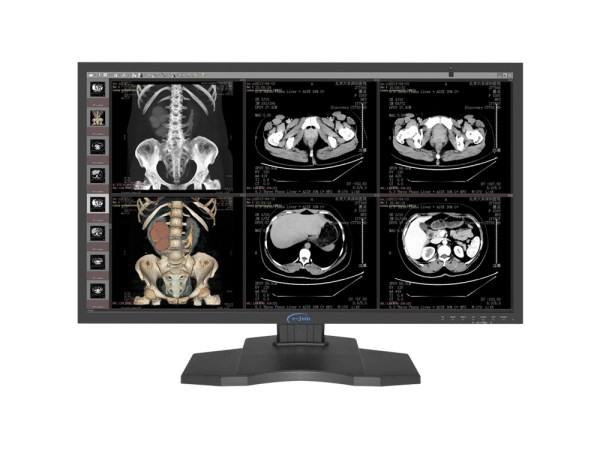

With a wide area of 31.5 inches, a high resolution of 8 megapixels, and multi-input/output ports, big HD HDMI led medical digital diagnostic color display screen monitor (RC85) achieves a maximum brightness of 1,000 cd/㎡and a contrast ratio of 1,300:1 similar to that of monochrome monitors to create the perfect balance between comfort and functionality in diagnostic imaging reading environment. This ensures that on a single seamless screen, various monochrome images such as breast tomosynthesis and mammography can be displayed accurately alongside color images such as PET-CT, ultrasound machines, pathology, and biopsies to accurately examine breast tissue in extremely sharp and precise quality, with less panning and zooming. By utilizing the RC85’s increased viewing space and freedom of layout, it will allow for the comparison of old and current scans, leading to greater efficiency.

Share to:

Basic Parameters

◊ Grayscale: 16 bits LUT
◊ Resolution: 3,840 × 2,160
◊ Display Ratio: 16:9
◊ Brightness: 1,000 cd/㎡
◊ Contrast Ratio: 1,300:1
◊ Signal Ports: DP×2, DVI-D×2, VGA×1, HDMI×2
◊ Power Supply: DC 24V
◊ Power Consumption: ≤120W
◊ MTBF: >30,000 Hours

Features

■ High-bright, steady colors and grays.
■ Automatically distinguish & display as color.
■ Dual DVI inputs offer all-digital connection for higher quality images.
■ Maximize workspace ergonomics, by minimizing eye fatigue and movement.
■ Front sensor to ensure 24/7 compliance to image quality standards and guidelines.

Advantages

♦ All-in-one breast imaging.
♦ Multimodality display for PACS and breast imaging.
♦ Enjoy working with flexibility on an 8-million-pixel, large monitor screen.
♦ Available for Full-Field Digital Mammography (FFDM), Digital Radiography (DR), Computed Tomography (CT), Magnetic Resonance Imaging (MRI), and Digital Subtraction Angiography (DSA).
