Basic Parameters
◊ Grayscale: 16 bits LUT
◊ Resolution: 1,536 × 2,048
◊ Display Ratio: 3:4
◊ Brightness: 1,100 cd/㎡
◊ Contrast Ratio: 1,800:1
◊ Signal Ports: DP×1, DVI-D×1, VGA×1, USB Type-A×3, USB Type-B×1, BNC(SOG)×1, HDMI×1
◊ Power Supply: DC 24V
◊ Power Consumption: ≤60W
◊ MTBF: >50,000 Hours
Features

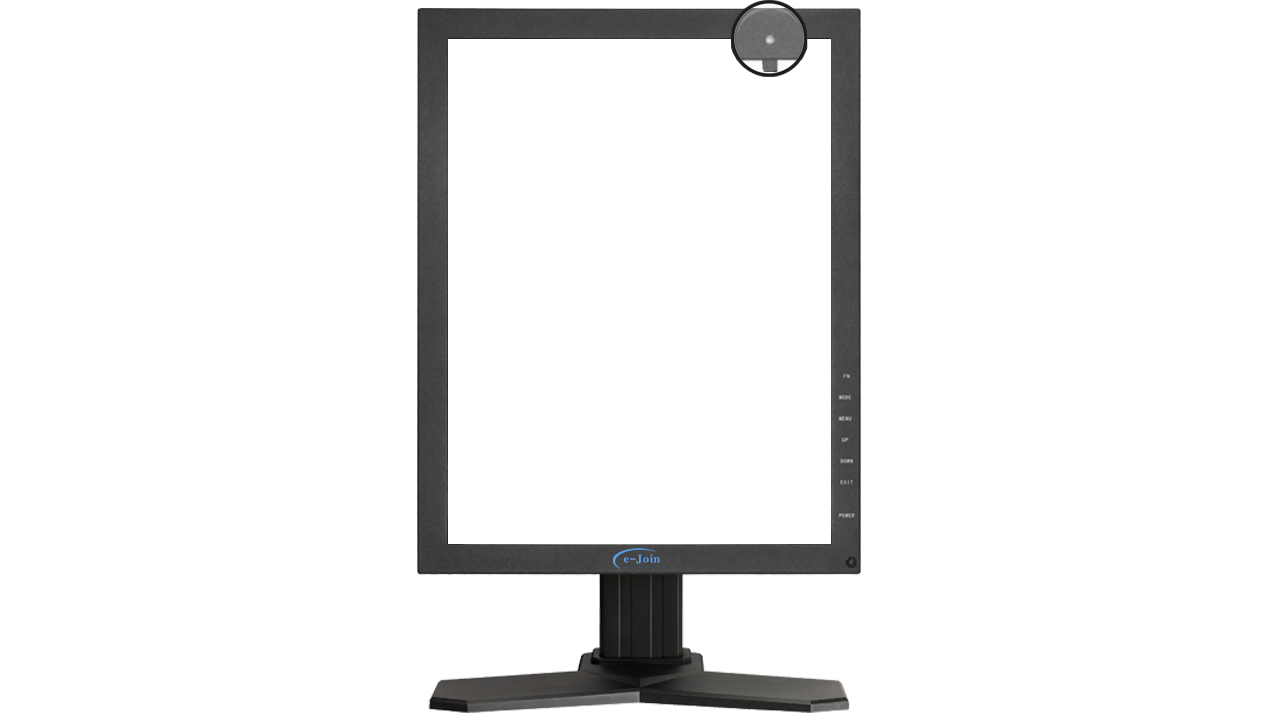

■ Front sensor for easy DICOM conformance.
■ Constant luminance in all regions of the screen.
■ Perfect representation of calibrated colors and greyscales.
■ In grayscale and color (featuring unique color calibration).
■ DICOM Pre-setting and convenient for switching between DICOM and Gamma 2.2.
Advantages
♦ Boost images for easy viewing.
♦ Improved workflow with high resolution.
♦ Make every pixel permanently DICOM compliant, ensuring consistent colors and grayscales.
♦ Available for Direct Digital Radiography (DR), Computed Tomography (CT), Magnetic Resonance Imaging (MRI), and Digital Subtraction Angiography (DSA).
