NDT E7

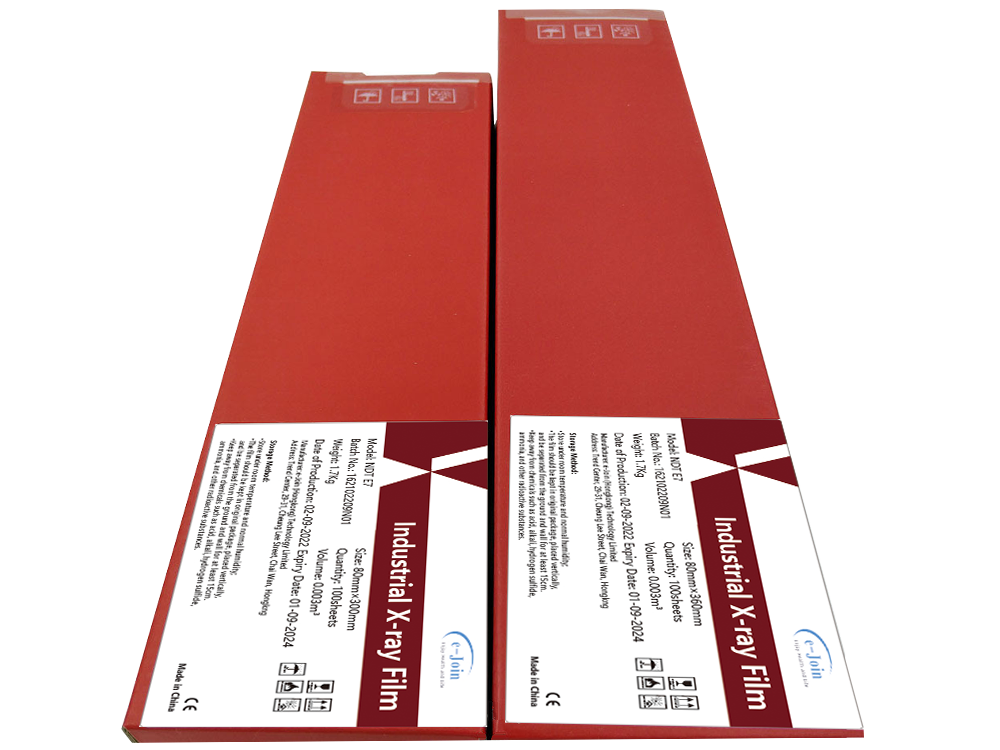

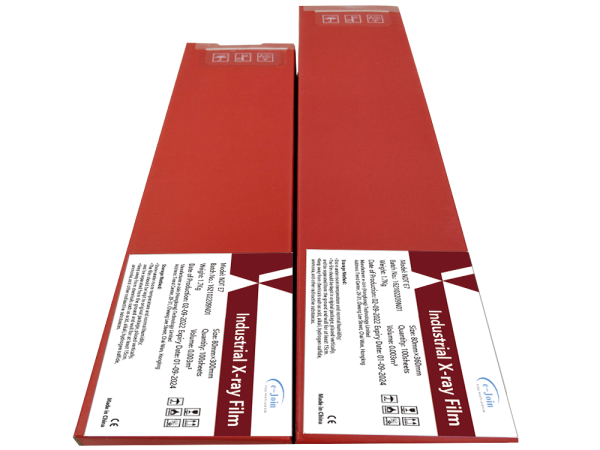

ISO 11699-1: C5, Industrial X-ray Imaging Blue Base Clear Film

Containing organic silver oxide emulsions coated on a blue-tinted polyester support with approximately 175μm thickness, Industrial X-ray Film (NDT E7) is extremely versatile, which makes it a great solution for many Non-destructive testing (NDT) industrial applications. The very fine grain NDT E7 is suitable for the inspection ofa light metals with low activity radiation sources and for inspection of thick, higher density specimens with high kilovoltage X-ray or gamma ray sources. NDT E7 is not only generally used in direct exposure techniques with lead foil screens, but also suitable for use with fluorescent or fluorometallic screens. This industrial X-ray imaging blue base clear film (NDT E7) offers incredibly robust handling characteristics to withstand high temperatures and humidity, and be resistant to static artifacts, so a remarkable consistent fine-grain image quality could be yielded regardless of the material examined and the source of radiation employed.

Share to:

Performance Characteristics

► 200 kV, Pb screens, auto. proc., 2 min, 28°C
► Replaces: AA400, IX100, D7
► Spectral Sensitivity: X-ray and visible blue light
► Safelight filter: (Red) 1,2, or GBX-2
► System classes: C5(CEN EN 584-1), II(ASTM E1815-96), C5(ISO 11699-1), T3(JIS K7627)

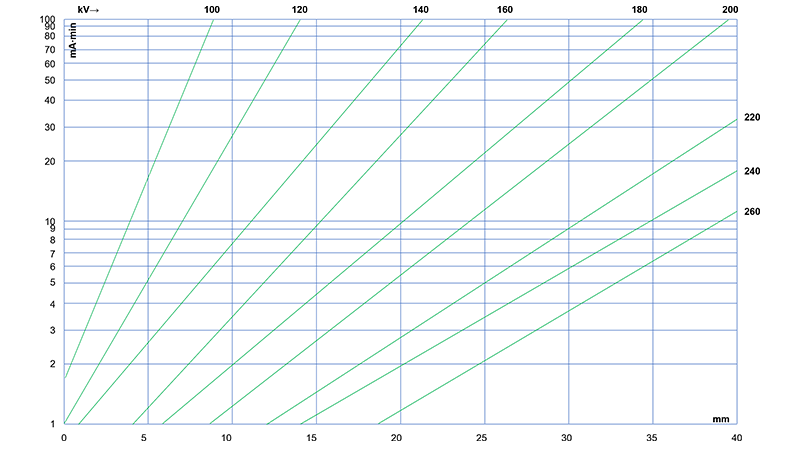

Exposure Diagram

◊ Films to be handled under lamp(15 or 20 watt bulb) with safelight filter.
◊ Steel (Fe), type of X-ray tube (Constant potential), Pb-screens, 2 (Density), 1 m (FFD), auto. proc., 2 min, 28°C.
◊ The diagram shown here are meant only as a guide, as the correct exposure will mainly depend on the variations of the object, the exposure equipment used and on the processing conditions.

Sizes and Packaging

■ Available formats: sheets and rolls.
■ Sheet size: 3.5″×8.5″, 3.5″×10″, 3.5″×17″, 4.5″×10″, 4.5″×17″, 5″×7″, 7″×17″, 8″×10″, 9″×17″, 10″×12″, 10″×24″, 11″×14″, 14″×17″.
■ Roll size: 100mm(Max. width), 300m(Max. length).
■ Other packaging and sizes are available on special requirement.

Advantages

◙ High resistance to Scratches and Cracks.
◙ Batch to batch consistency to increase productivity.
◙ Stable density throughout Development Time/Temperature Ranges.
◙ The extremely narrow grain size distribution to keep consistent processing quality.
◙ Protective top coating resulting in unique high resistance to pressure, scratching and creasing.
◙ Minimizes impact on the environment with less chemistry consumption, higher film throughput and lower energy usage.

Ideal For

Low graininess film with high contrast and high speed. Designed for direct exposure or with lead screens. For exposure with lead screens, using either X-ray or gamma rays.

♦ Electrical components.
♦ Defense and nuclear industry.
♦ Composite materials (Fiber-reinforced).
♦ Welded fabrication at a normal sensitivity level.
♦ Forensics, Forestry, Munitions, Bomb Disposal, Pipelines.
♦ Tires, Ordnance inspection, Archeological artifacts, Concrete.
♦ Investment castings and assemblies with medium to higher atomic number metals.
♦ Aircraft construction and maintenance, Aeroengines, Aerospace components in Aerospace and aircraft industry.
