Performance Characteristics
► 200 kV, Pb screens, auto. proc., 2 min, 28°C
► Replaces: T200, IX80, D5
► Spectral Sensitivity: X-ray and visible blue light
► Safelight filter: (Red) 1,2, or GBX-2
► System classes: C4(CEN EN 584-1), I(ASTM E1815-96), C4(ISO 11699-1), T2 (JIS K7627)
Exposure Diagram
◊ Films to be handled under lamp(15 or 20 watt bulb) with safelight filter.
◊ Steel (Fe), type of X-ray tube (Constant potential), Pb-screens, 2 (Density), 1 m (FFD), auto. proc., 2 min, 28°C.
◊ The diagram shown here are meant only as a guide, as the correct exposure will mainly depend on the variations of the object, the exposure equipment used and on the processing conditions.

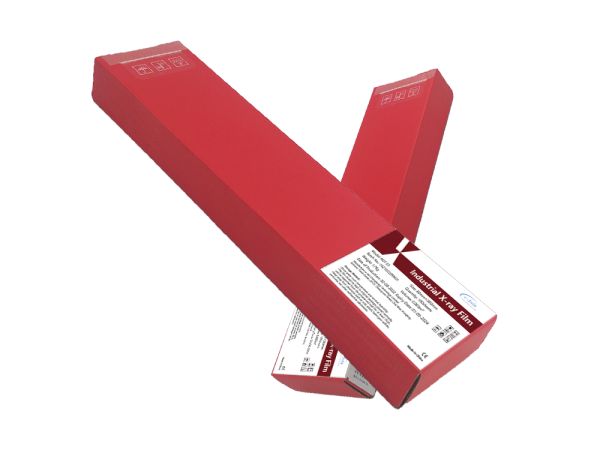

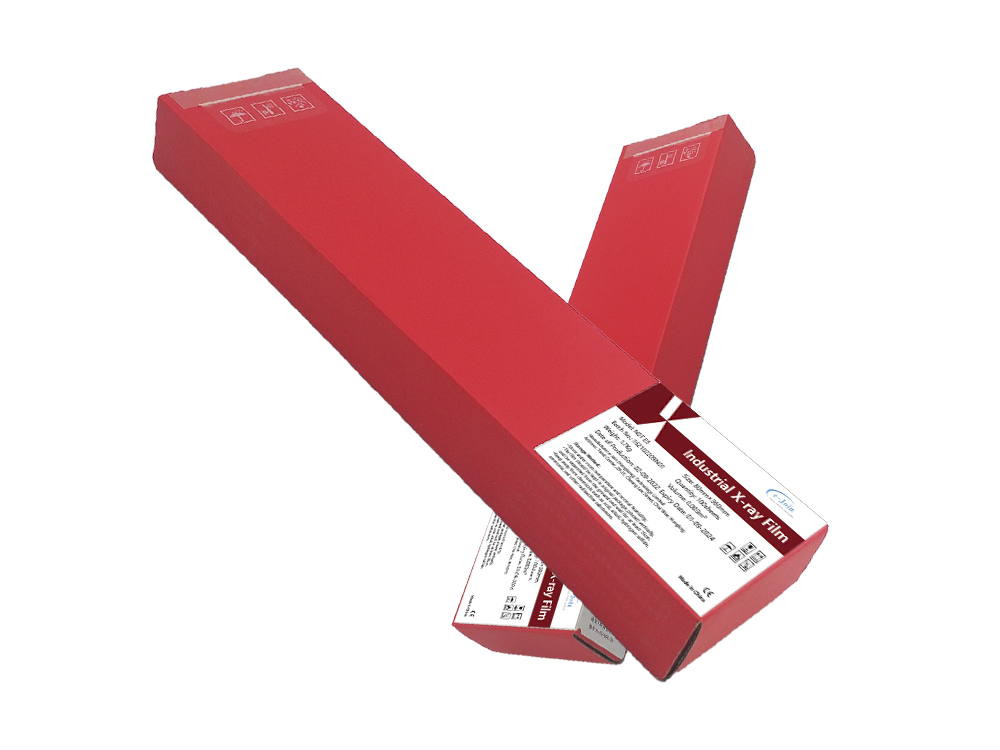

Sizes and Packaging
■ Available formats: sheets and rolls.
■ Sheet size: 3.5″×8.5″, 3.5″×10″, 3.5″×17″, 4.5″×10″, 4.5″×17″, 5″×7″, 7″×17″, 8″×10″, 9″×17″, 10″×12″, 10″×24″, 11″×14″, 14″×17″.
■ Roll size: 100mm(Max. width), 300m(Max. length).
■ Other packaging and sizes are available on special requirement.
Advantages
◙ Less density unevenness.
◙ Easy to use, greater ease, savings in time and costs.
◙ Combines both economy in use and ecological responsibility.
◙ Less “adhesion” from Lead Screens to Unprocessed Film Surface (Lead Oxide Transfer).
◙ Compatible with all NDT chemistries and current brand tank / automatic processing conditions.
◙ Produced at a single facility under tightly controlled conditions in an ultramodern coating room to guarantee consistent production quality.
Ideal For
Very low graininess film with very high contrast and medium speed. Excellent for visualization of discontinuities. This film is intended for use in multiple film radiography and in single film with lead screens, using either X-ray or gamma rays.
♦ Shipbuilding.
♦ Electronic components.
♦ Graphite epoxy composites.
♦ Defense and nuclear industry.
♦ Composite materials (Fiber-reinforced).
♦ Welded fabrication at a normal sensitivity level.
♦ Forensics, Munitions, Bomb Disposal, Paintings/Sculptures, Pipelines.
♦ Investment castings and assemblies with low to medium atomic number metals.
♦ Aircraft construction and maintenance, Aeroengines, Aerospace components in Aerospace and aircraft industry.
