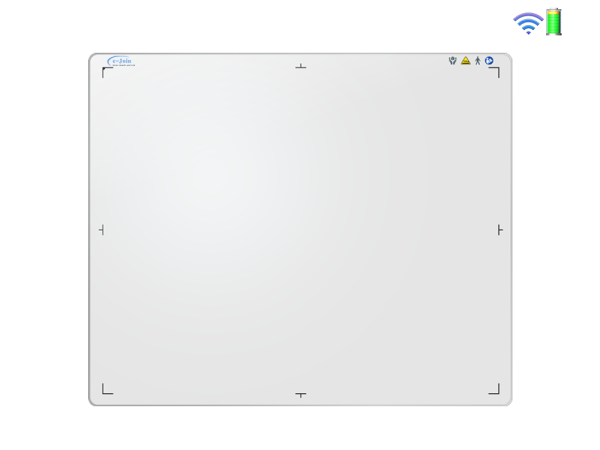

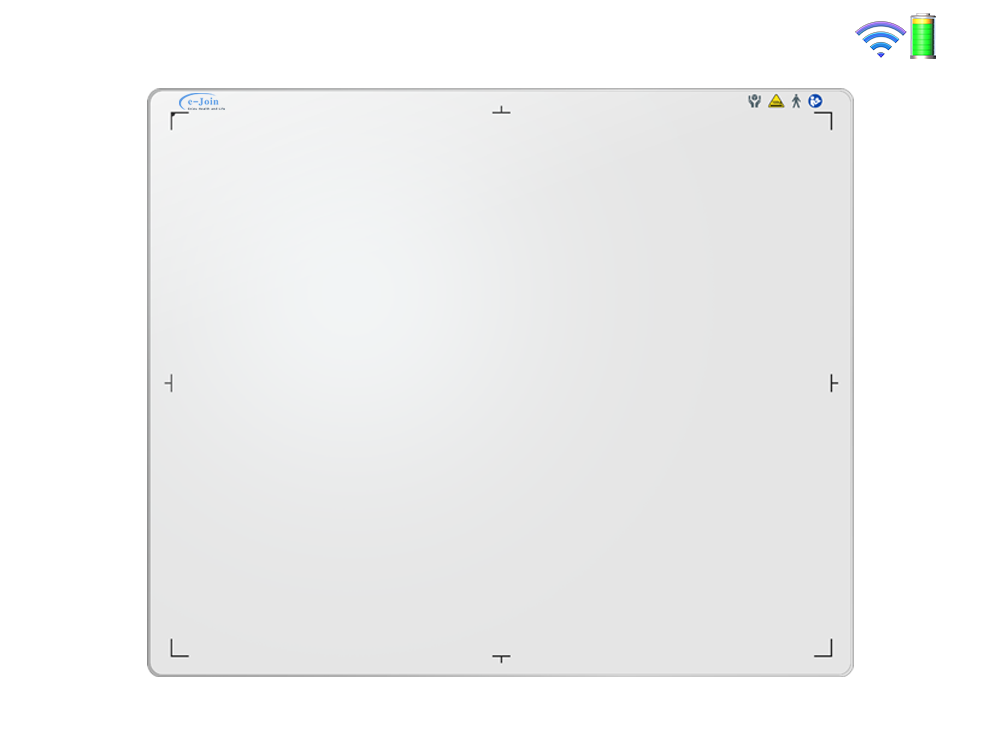

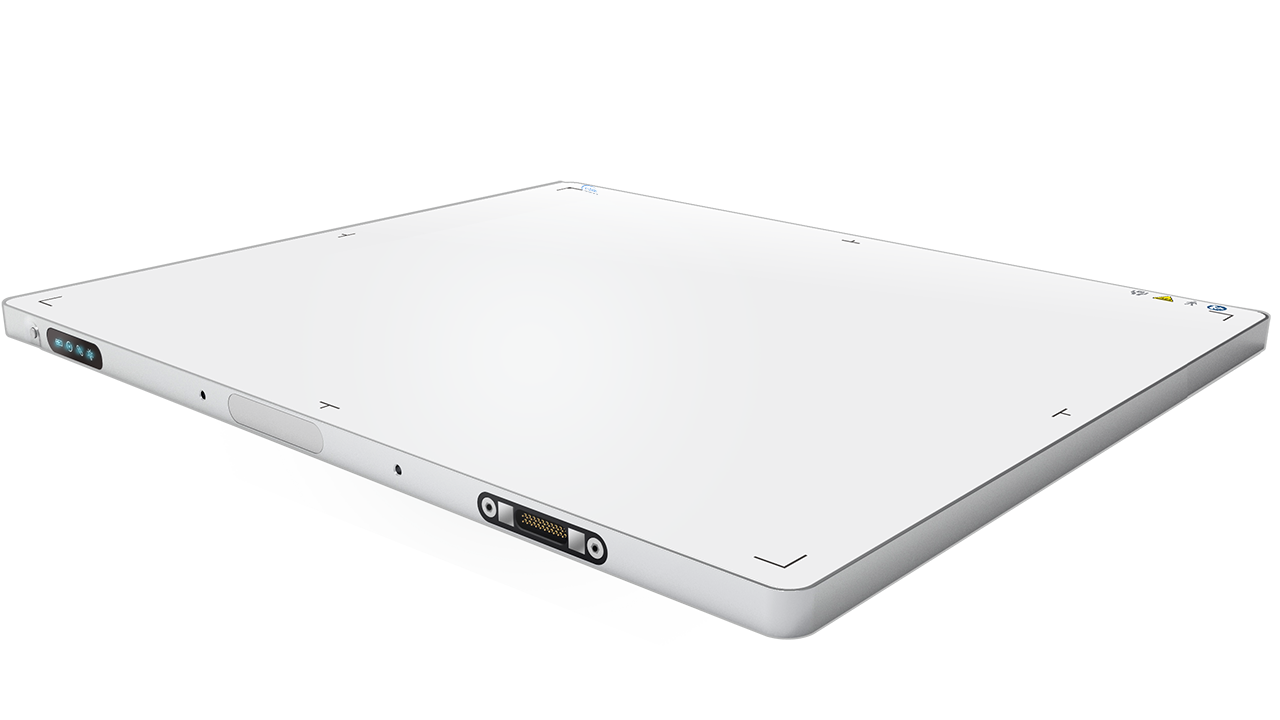

NRL1417

GOS or CsI NDT Wireless Mobile Industrial Digital Imaging X-ray Detector

Merging the latest portable wireless technology, battery-operating technology, and extensive customer insight, the new-generation GOS or CsI NDT wireless mobile industrial digital imaging x-ray detector (NRL1417) was developed to easily transport, operate, and fit the criteria for mobile inspection of installations perfectly. Extended by its wireless capabilities and the portable design, NRL1417 is qualified as a versatile digital inspection system for a broad range of industrial radiographic inspections in the field covering medium to large sized objects in non-destructive testing (NDT). Additional layer of shielding in the detector protect itself better from the harmful effects of radiation for a longer lifetime and consistent performance. High-quality images from the system are made consistent, regardless of the operator, for easier reading and more confident reviewing.

Share to:

Basic Parameters

◊ Detector Technology: Amorphous Silicon
◊ Scintillator: CsI, GOS
◊ Active Area: 14 inch × 17 inch
◊ Pixel Pitch: 139 μm
◊ AD Conversion: 16 bits
◊ Protection Level: IPX1
◊ Pixel Matrix: 2,560 × 3,072
◊ Spatial Resolution: 3.6 lp/mm
◊ Full Image Time: 2 s (Wireless)
◊ Max. Energy: 450 kVp (40-150 kVp, default)
◊ Housing: Aluminum frame, carbon-fiber entrance window

Features

■ For stationary and mobile applications.
■ Equipped with an internal shielding for use up to 450 kV.
■ Extremely robust design with handle for easy portability.
■ Robust wireless connectivity for faster image transfer and analysis.
■ Less required dose for shorter exposure times and faster throughput.
■ Powerful 139 μm high-resolution image capture for minuscule defect detection.
■ Protective, weatherproof enclosure perfect for remote fieldwork in harsh environments.
■ Lithium-ion batteries with hot-swap function to keep the mobile detector running during battery change.

Applications

♦ Casting inspection.
♦ Shipyard weld inspection.
♦ Power line inspection, GIS.
♦ Science, art and archeology.
♦ Defense and nuclear industry.
♦ Maintenance, repair & operation in aerospace industry.

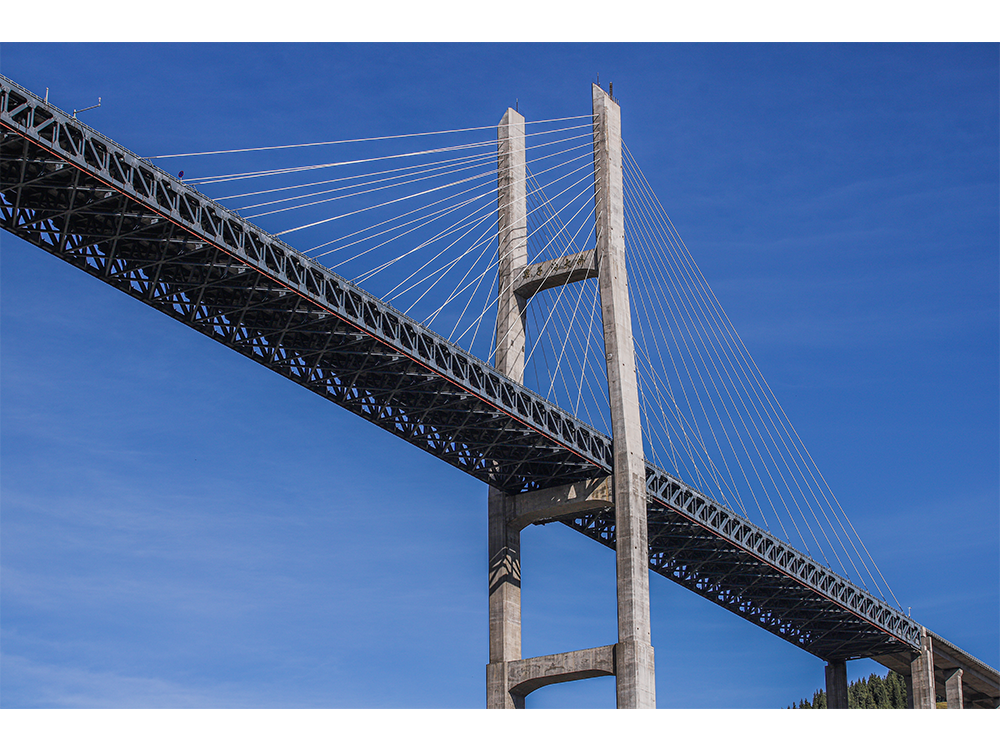

♦ Structure inspection: Electronic components, composite materials, concrete, bridges, supports, etc.

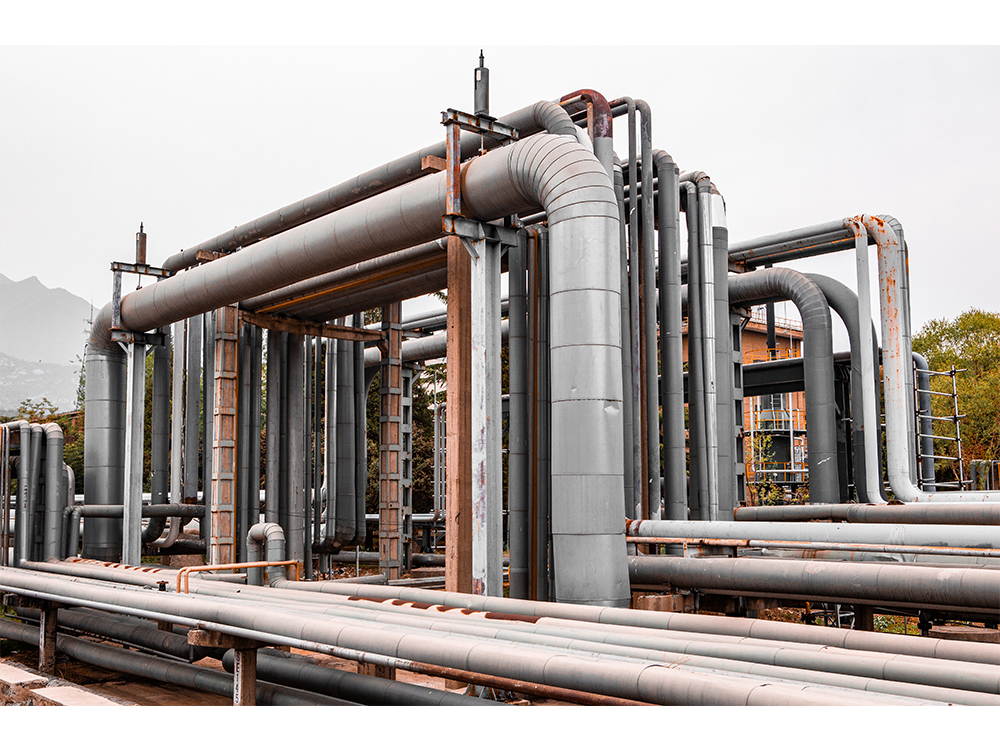

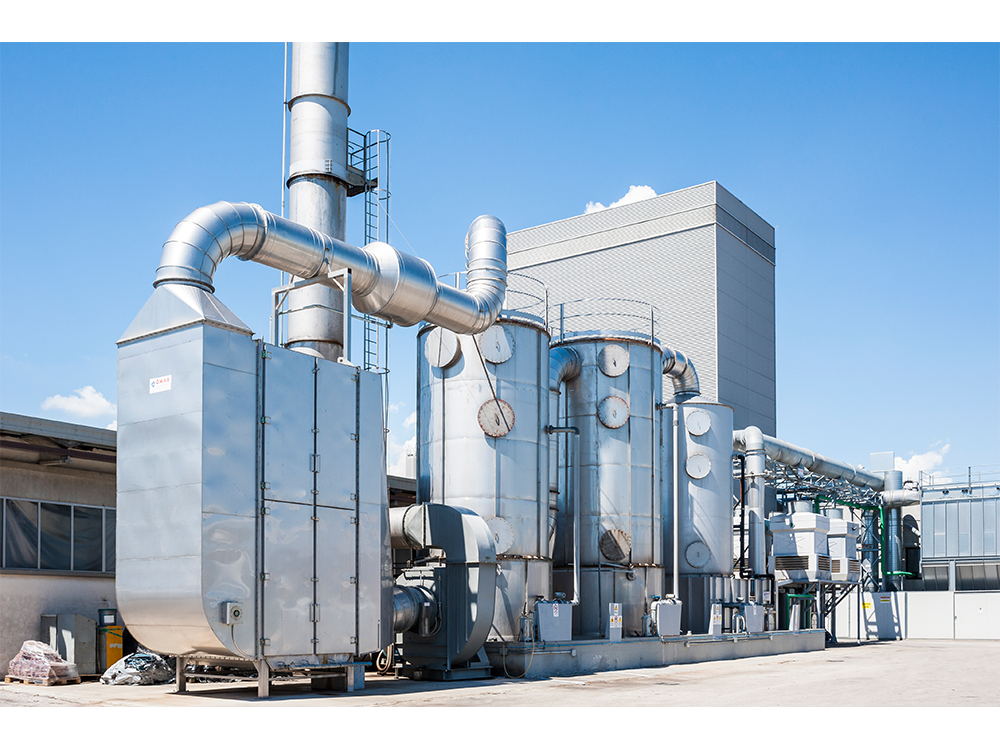

♦ Oil & gas and energy, in-service inspection: CUI & WT measurement, valve positioning, pipe support, boiler tubes.

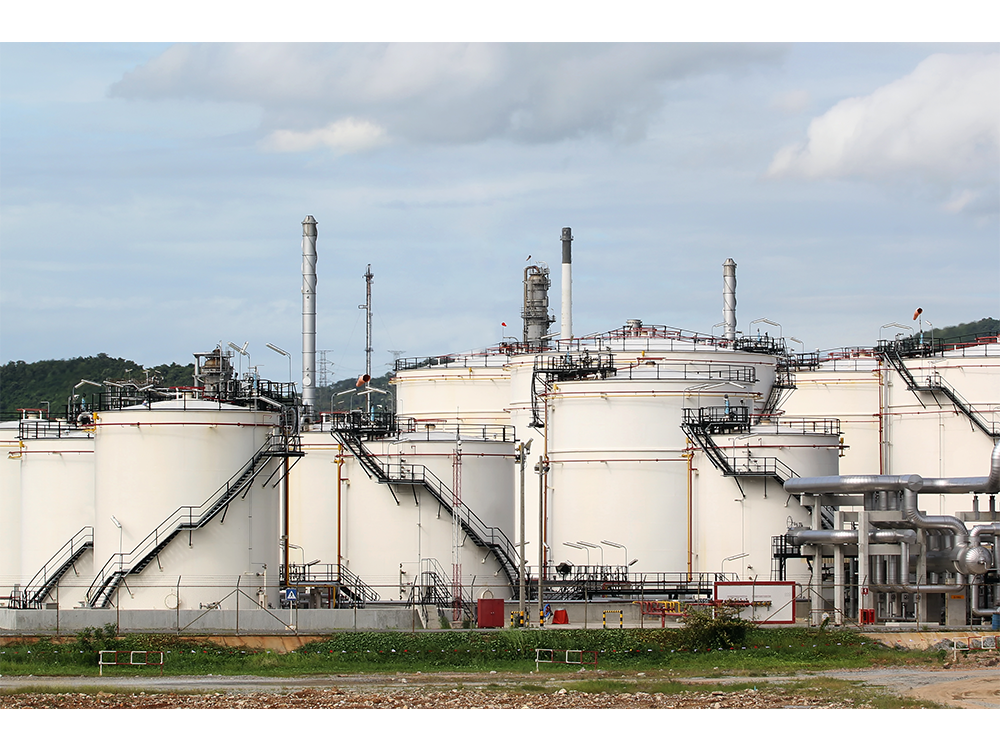

♦ Weld inspection in oil & gas, energy and aviation: Transport pipelines, complex structures (spool), boiler & pressure tubes, fuel pipes, pressure vessels and storage tanks.
