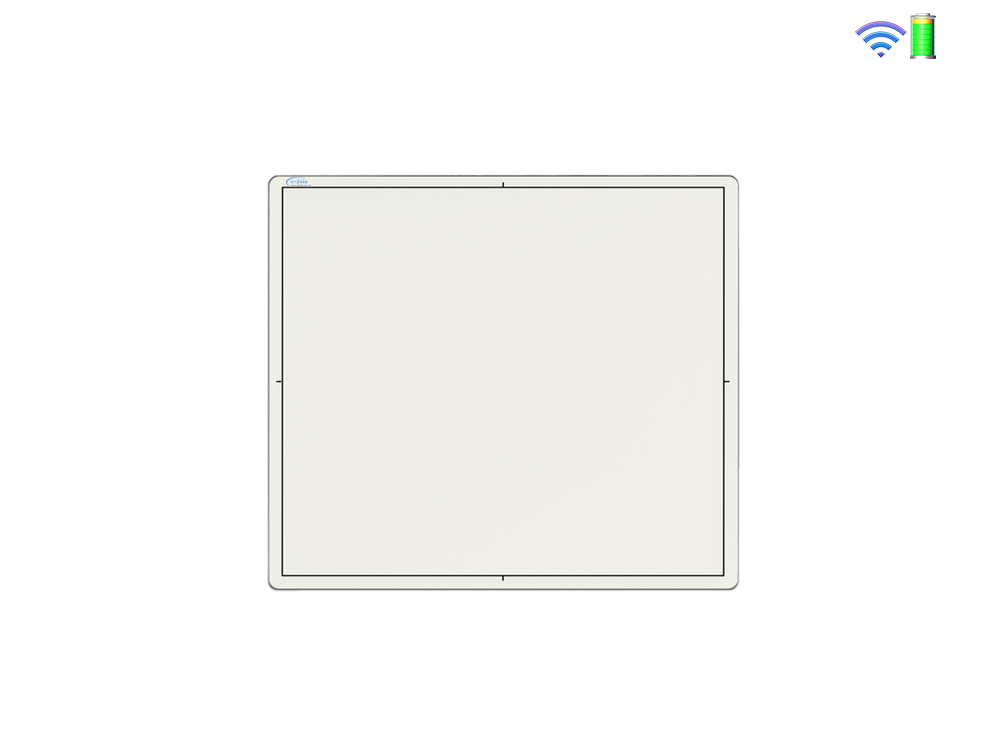

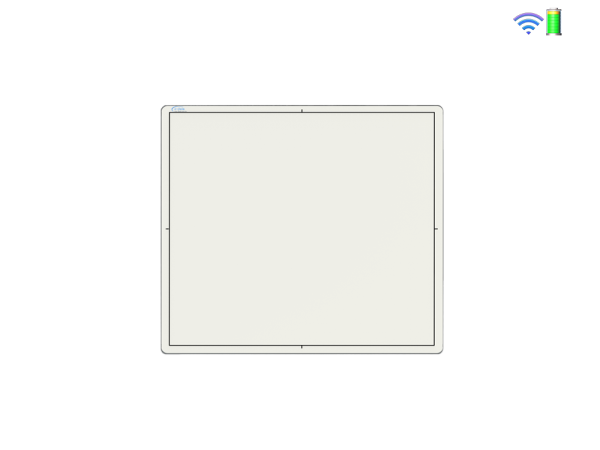

NRL1012

CsI NDT Wireless Mobile Industrial Digital Imaging X-ray Detector

Combining the unrivalled wealth of experience and expertise in medical and industrial radiography, e-Join offers a new-level CsI wireless mobile industrial digital imaging x-ray detector (NRL1012) for high-resolution image capture in non-destructive testing (NDT). This high-speed waterproof durable digital detector was designed from the ground up for maximum portability and the harsh conditions of industrial radiography. With compact size, NRL1012 is ideal for imaging applications in confined areas, tight spaces or in between objects, ushering in a new generation of flat panel detectors suitable for a wide range of NDT applications. The 139-μm pixel pitch allows the detector to produce images with outstanding quality to meet stringent industry standards.

Share to:

Basic Parameters

◊ Detector Technology: Amorphous Silicon
◊ Scintillator: CsI
◊ Active Area: 10 inch × 12 inch
◊ Pixel Pitch: 139 μm
◊ AD Conversion: 16 bits
◊ Protection Level: IPX3
◊ Pixel Matrix: 1,792 × 2,048
◊ Spatial Resolution: 3.6 lp/mm
◊ Full Image Time: 2 s (Wireless)
◊ Max. Energy: 350 kVp (40-150 kVp, default)
◊ Housing: Aluminum frame, carbon-fiber entrance window

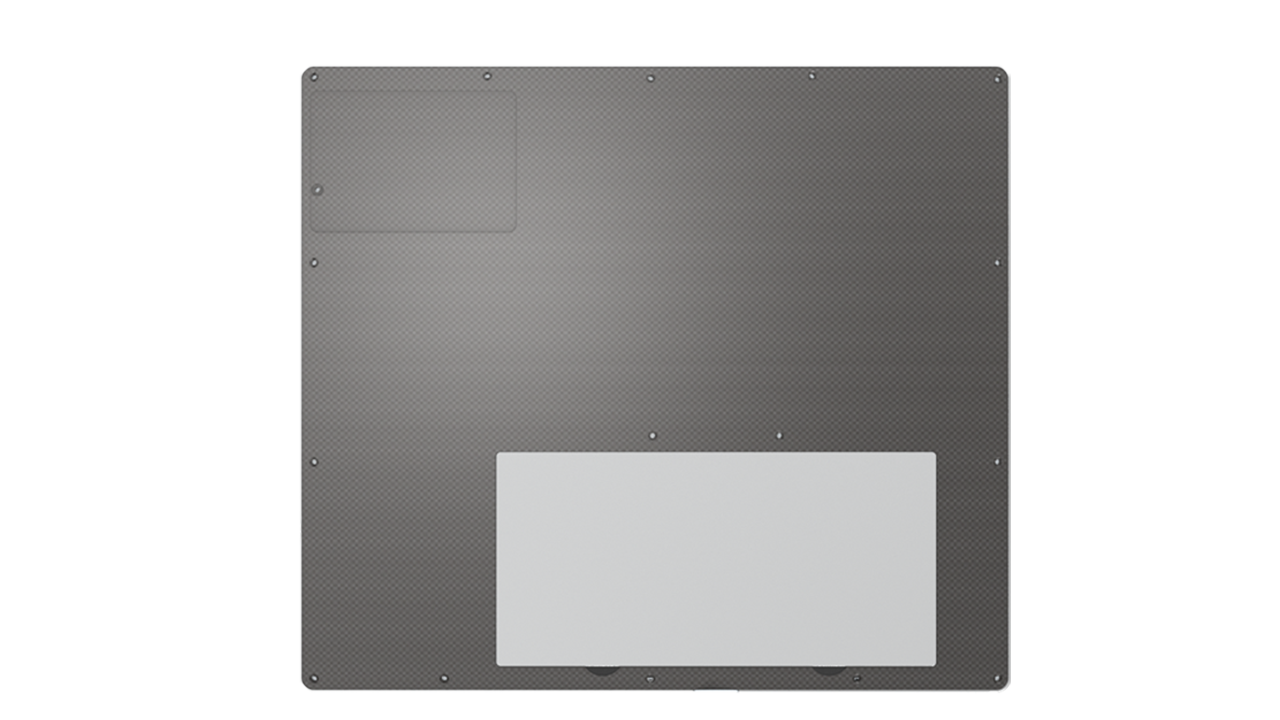

Back of CsI NDT Wireless Mobile Industrial Digital Imaging X-ray Detector NRL1012

Handle of CsI NDT Wireless Mobile Industrial Digital Imaging X-ray Detector NRL1012

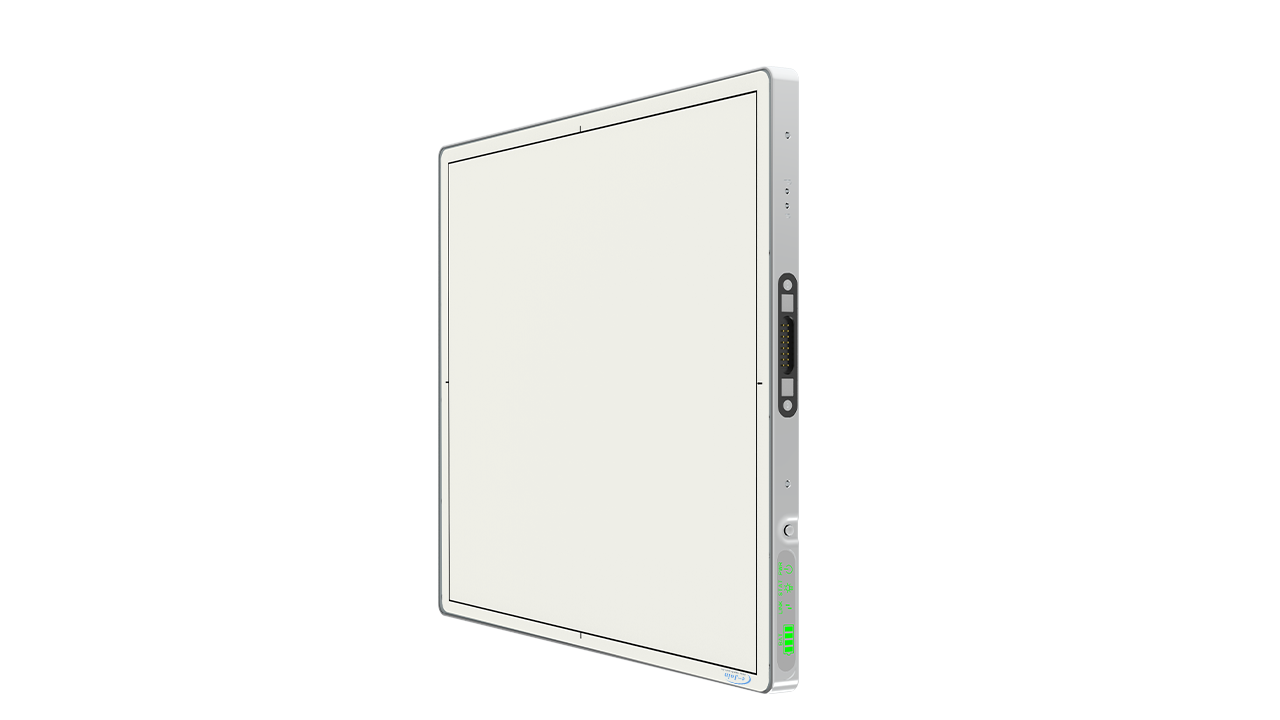

Side View of CsI NDT Wireless Mobile Industrial Digital Imaging X-ray Detector NRL1012

Features

■ Built-in wireless access point.
■ IPX3 rated enclosure for industrial inspections.
■ Extremely robust design with detachable carry handle.
■ Hot-swap function enables battery change during operation.
■ OLED displays with Wi-Fi, LAN, battery, and sensor status indicators.
■ Plumbum shielding for higher cumulative dose while preserving image quality.
■ Lightweight at 1.9 Kg with a slim profile for ease-of-use in field imaging.
■ Compact format (250 × 290 mm) and thin profile (15mm) for positioning in tight spaces.

Applications

♦ Casting inspection.
♦ Shipyard weld inspection.
♦ Power line inspection, GIS.
♦ Science, art and archeology.
♦ Defense and nuclear industry.
♦ Maintenance, repair & operation in aerospace industry.
♦ Structure inspection: Electronic components, composite materials, concrete, bridges, supports, etc.
♦ Oil & gas and energy, in-service inspection: CUI & WT measurement, valve positioning, pipe support, boiler tubes.
♦ Weld inspection in oil & gas, energy and aviation: Transport pipelines, complex structures (spool), boiler & pressure tubes, fuel pipes, pressure vessels and storage tanks.
