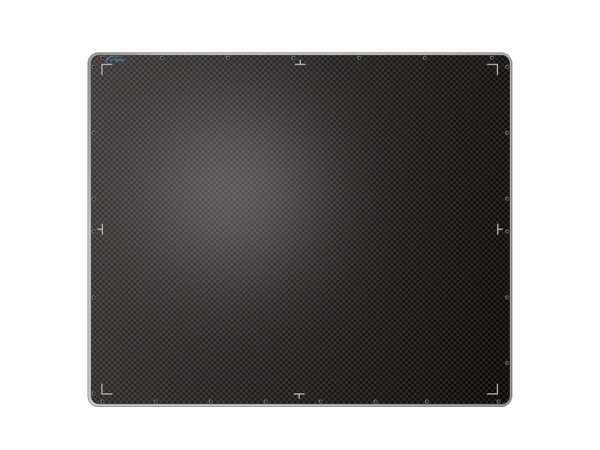

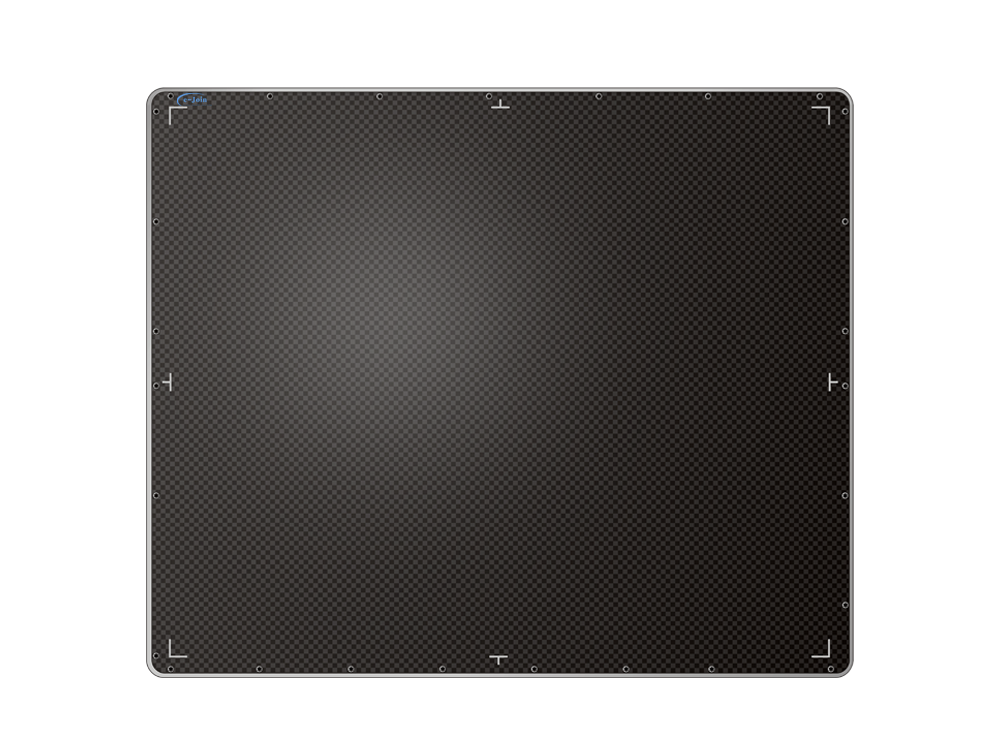

NRD1417

GOS or CsI NDT Tethered Fixed Industrial Digital Imaging X-ray Detector

The GOS or CsI tethered fixed industrial digital imaging x-ray detector (NRD1417) is especially designed for castings, welding, electronic components, and other industries that require reliable, high-resolution non-destructive testing (NDT) imaging against the rigors of NDT field work. NRD1417 has a 139-μm resolution and a less required exposure dose than industrial films to achieve faster throughput rates for more inspections in less time for imaging, which not only decreases shot time, and accelerates the process of analysis and reporting, but also maintains an optimal image level of quality assurance to identify minuscule cracks, porosity, and other defects. To provide the available solution for critical defect detection, e-Join also offers complete systems and upgrades by integrate detector technology into the field inspection instruments.

Share to:

Basic Parameters

◊ Detector Technology: Amorphous Silicon
◊ Scintillator: CsI, GOS
◊ Active Area: 14 inch × 17 inch
◊ Pixel Pitch: 139 μm
◊ AD Conversion: 16 bits
◊ Pixel Matrix: 2,560 × 3,072
◊ Spatial Resolution: 3.6 lp/mm
◊ Full Image Time: 1 s
◊ Max. Energy: 350 kVp (40-150 kVp, default)
◊ Housing: Aluminum frame, carbon-fiber entrance window

Features

■ Large format (350 x 430 mm) and thin profile (14.8 mm).
■ Minimum backscatter and noise, maximum image quality.
■ Docking connector for Gigabit Ethernet, power, and data sync.

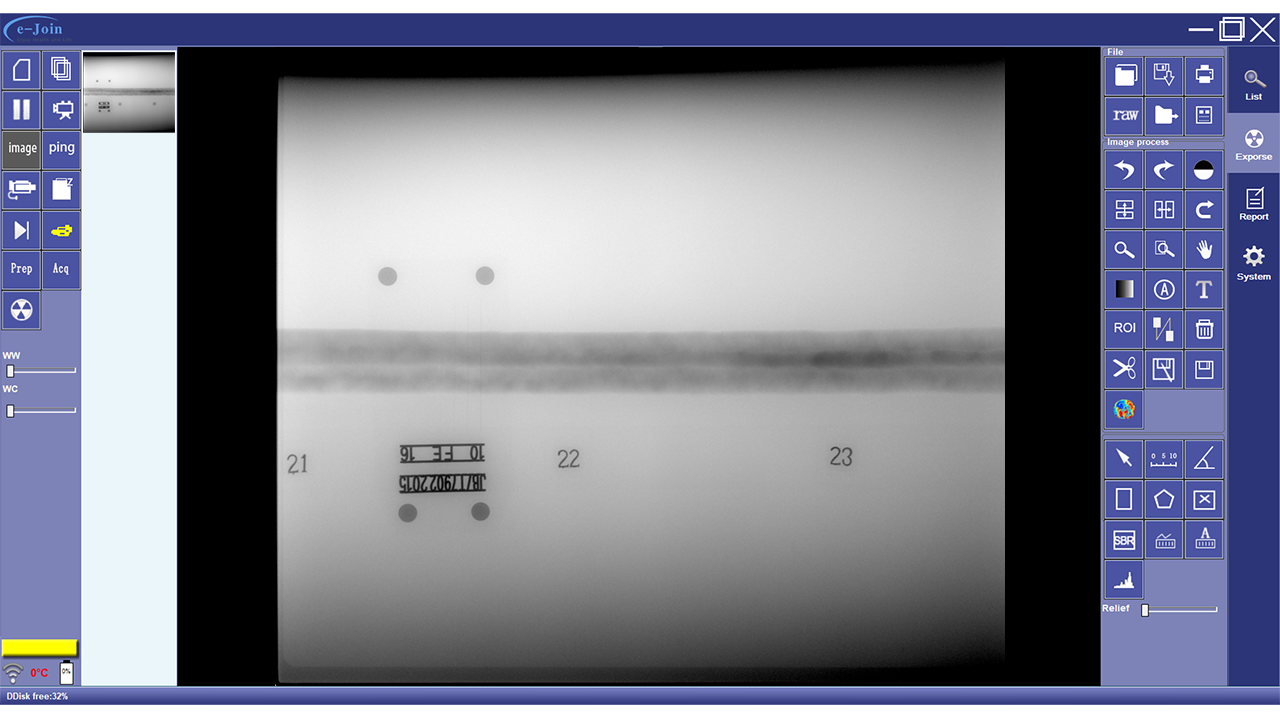

■ Pre-installed operation software for enhanced analysis capabilities with instant image review.
■ Heavy-duty plumbum shielding designed specifically for high exposure NDT applications up to 350 kV.

Applications

♦ Casting inspection.
♦ Science, art, and archeology.
♦ Defense and nuclear industry.
♦ Maintenance, repair & operation in aerospace industry.
♦ Structure inspection: Electronic components, composite materials, concrete, bridges, supports, etc.
♦ Weld inspection in oil & gas, energy, and aviation: Transport pipelines, complex structures (spool), boiler & pressure tubes, fuel pipes, pressure vessels and storage tanks.
